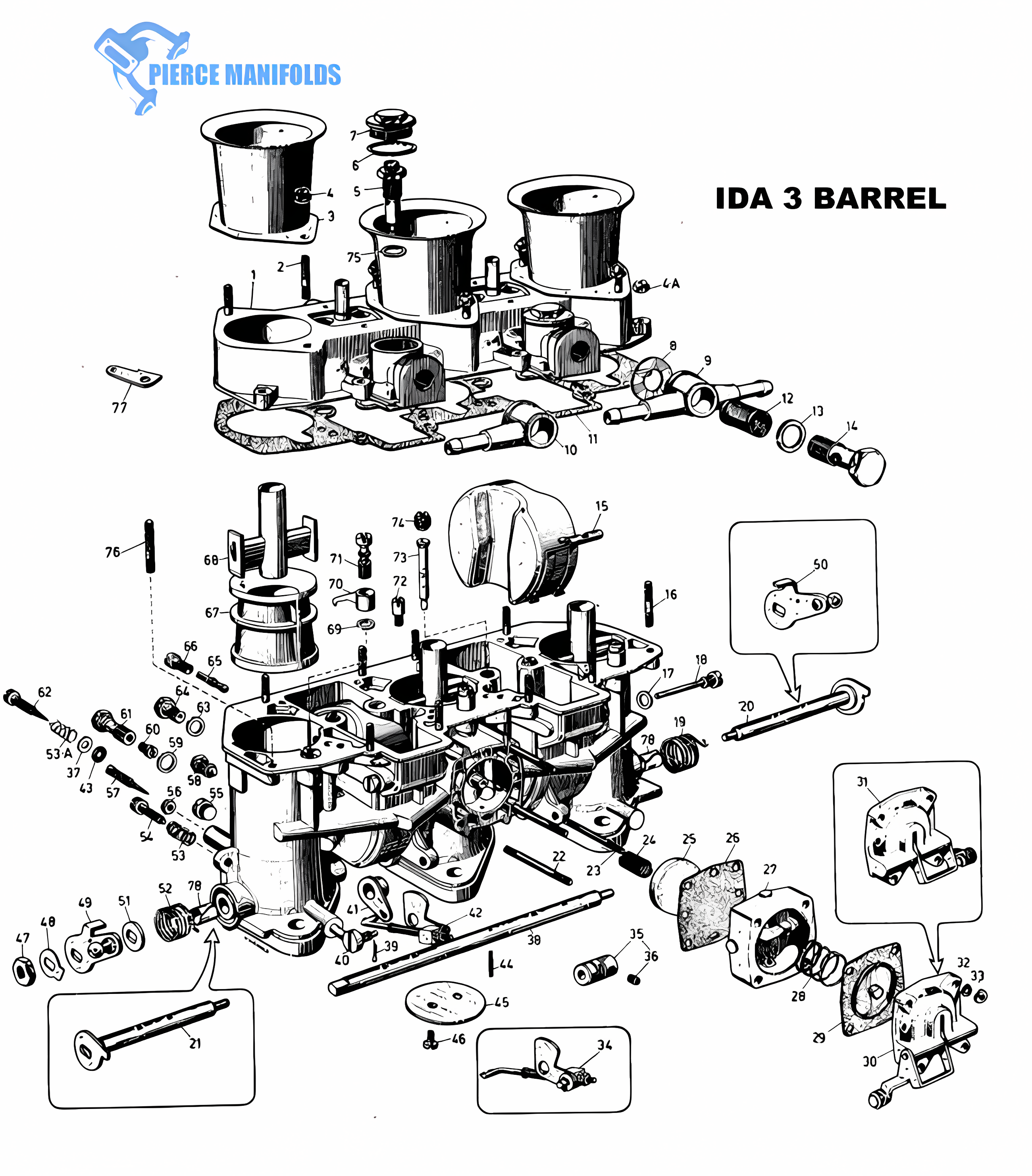

40 IDA Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Call for Info | Carburetor Cover | 1 |
| 2 | 64955.002 | Stud | 6 |
| 3 | 52845.005 | Air Intake | 6 |
| 4 | 34725.003 | Nut | 6 |
| 4a | 34725.003 | Nut | 10 |
| 5 | 79508.* | Needle Valve | 2 |
| 6 | 41530.035 | Gasket | 2 |
| 7 | 61002.005 | Plug | 2 |
| 8 | 41530.004 | Gasket | 2 |
| 9 | 10356.005 | Filter Body | 1 |
| 10 | 10356.002 | Filter Body | 1 |
| 11 | 41710.001 | Gasket | 1 |
| 12 | 37022.001 | Filter Gauze | 2 |
| 13 | 41530.001 | Gasket | 2 |
| 14 | 12715.014 | Plug | 2 |
| 15 | 41015.007 | Float | 2 |
| 16 | 64995.030 | Stud | 9 |
| 17 | 41540.016 | Gasket | 2 |
| 18 | 64900.012 | Fulcrum Screw | 2 |
| 19 | 47610.072 | Spring | 1 |
| 20 | 10015.419 | Spindle 40IDA 3 c1 | 1 |
| 20a | Call for Info | Oversize Spindle 40 ida 3c1 | 1 |
| 21 | 10015.415 | Spindle 40 ida 3c | 1 |
| 21a | Call for Info | Oversize Spindle 40 ida 3c1 | 1 |
| 22 | 64955.011 | Stud | 2 |
| 23 | 64955.020 | Stud | 2 |
| 24 | 47600.128 | Spring | 1 |
| 25 | 64190.004 | Pump Valve | 1 |
| 26 | 47405.011 | Diaphragm | 1 |
| 27 | 39174.002 | Pump Body | 1 |
| 28 | 47600.012 | Spring | 1 |
| 29 | 47407.010 | Diaphragm | 1 |
| 30 | 32486.009 | Pump Cover 40IDA 3C1 | 1 |
| 31 | 32486.010 | Pump Cover 40IDA 3C1 | 1 |
| 32 | 55525.007 | Spring Washer | 4 |
| 33 | 34705.003 | Nut | 4 |
| 34 | 61287.002 | Tie Rod 40 IDA 3C | 1 |
| 35 | 32272.001 | Joint Coupler (Aluminum Style | 1 |
| 36 | 64600.001 | Screw | 4 |
| 37 | 55510.018 | Washer | 3 |
| 38 | 10005.407 | Spindle | 1 |
| 39 | 32610.006 | Split Pin | 2 |
| 40 | 64895.003 | Fulcrum Screw | 1 |
| 41 | 45027.007 | Lever | 1 |
| 42 | 61287.001 | Tie Rod 40 IDA 3C1 | 1 |
| 43 | 41565.002 | O' Ring | 3 |
| 44 | 58445.001 | Spring Pin | 1 |
| 45 | 64005.126 | Throttle | 3 |
| 46 | 64520.027 | Screw | 6 |
| 47 | 34715.007 | Nut | 1 |
| 48 | 55520.008 | Washer | 1 |
| 49 | 45034.028 | Control Lever 40 IDA 3C1 | 1 |
| 50 | 45034.027 | Control Lever 40 IDA 3C | 1 |
| 51 | 55555.019 | Washer | 1 |
| 52 | 47610.071 | Spring | 1 |
| 53 | 47600.007 | Spring | 1 |
| 53a | 47600.007 | Spring | 3 |
| 54 | 64590.005 | Throttle Adjusting Screw | 1 |
| 55 | 61015.009 | Progression Hole Inspection Screw | 3 |
| 56 | 34705.001 | Nut | 3 |
| 57 | 64570.002 | Air Adjusting Screw | 3 |
| 58 | 64840.003 | Choke Fixing Screw | 3 |
| 59 | 41540.001 | Gasket | 3 |
| 60 | 73801.* | Main Jet | 3 |
| 61 | 52590.001 | Jet Holder | 3 |
| 62 | 64750.004 | Idle Mixture Adjusting Screw | 3 |
| 63 | 41530.006 | Gasket | 2 |
| 64 | 61002.006 | Plug | 2 |
| 65 | 74403.* | Idling Jet | 3 |
| 66 | 52570.005 | Jet Holder | 3 |
| 67 | 71502.* | Choke | 3 |
| 68 | 71103.450 | Secondary Venturi | 3 |
| 69 | 41540.014 | Gasket | 3 |
| 70 | 76201.* | Pump Jet | 3 |
| 71 | 64290.005 | Delivery Valve | 3 |
| 72 | 79701.* | Intake Valve | 1 |
| 73 | 61440.* | Emulsion Tube | 3 |
| 74 | 77201.* | Air Corrector Jet | 3 |
| 75 | 41530.005 | Gasket | 2 |
| 76 | 64955.030 | Stud | 1 |
| 77 | 52150.006 | Plate | 1 |
| 78 | 52130.010 | Shaft Bushing | 2 |
