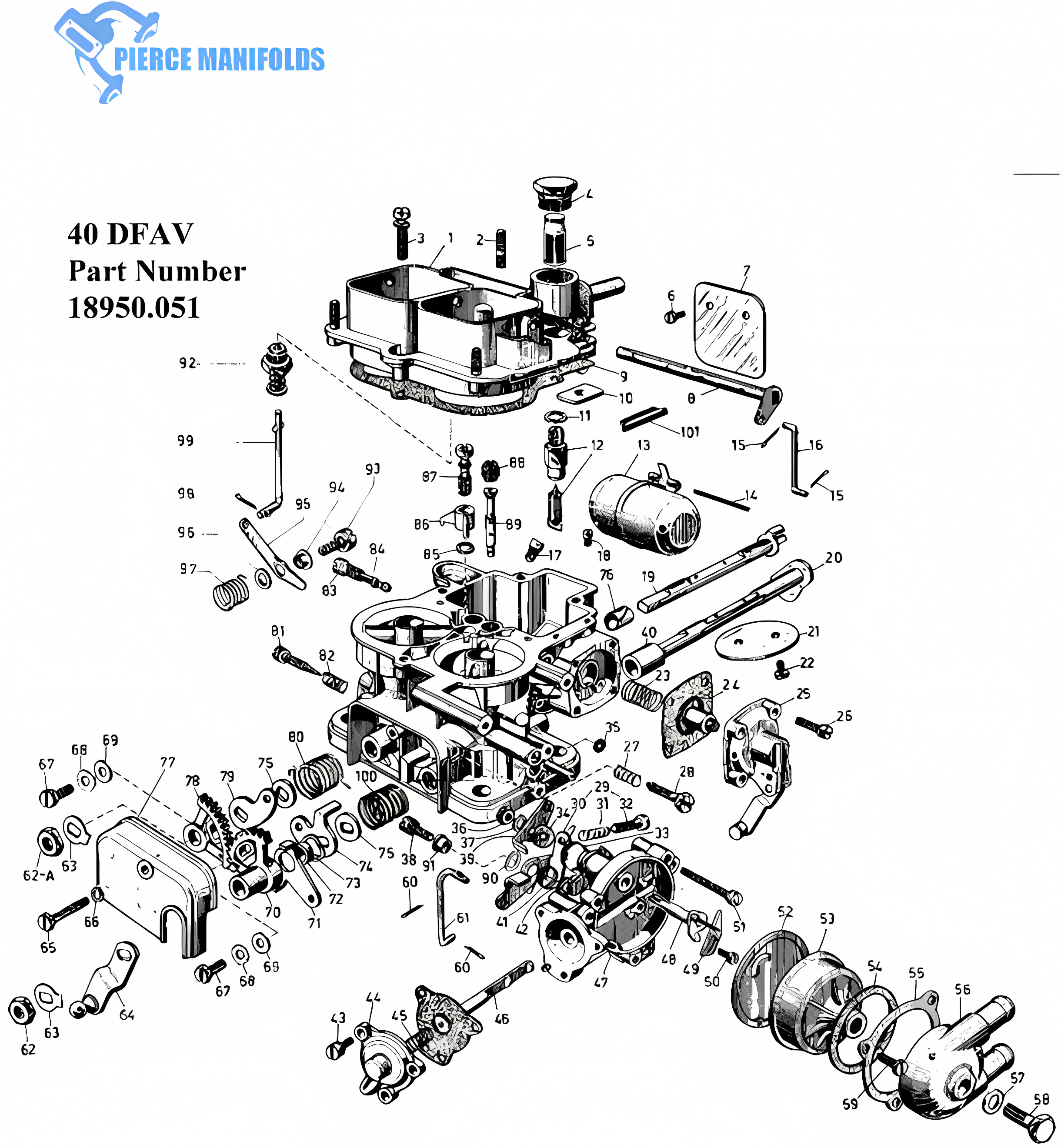

40 DFAV Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31716.092 | Carb Top Cover | 1 |
| 2 | 64955.002 | Stud Bolt | 3 |
| 3 | 64700.005 | Top Cover Screw | 5 |
| 4 | 61002.018 | Strainer Inspection Plug | 1 |
| 5 | 37022.010 | Strainer | 1 |
| 6 | 64525.003 | Screw | 4 |
| 7 | 64010.007 | Plate | 2 |
| 8 | 10020.204 | Shaft & Lever Assembly | 1 |
| 9 | 41705.031 | Top Cover Gasket | 1 |
| 10 | 52135.010 | Dust Seal | 1 |
| 11 | 83102.070 | Gasket | 1 |
| 12 | 79519.* | Needle & Seat | 1 |
| 13 | 41015.004 | Float | 1 |
| 14 | 52000.015 | Float Pin | 1 |
| 15 | 32610.005 | Split Pin | 2 |
| 16 | 61280.004 | Rod | 1 |
| 17 | 73801.* | Main Jet | 2 |
| 18 | 61015.005 | Plug | 1 |
| 19 | 10015.482 | Shaft | 1 |
| 20 | 10015.430 | Shaft Assembly | 1 |
| 21 | Not Available | Plate | 2 |
| 22 | 64520.027 | Screw | 4 |
| 23 | 47600.107 | Accelerator Pump Spring | 1 |
| 24 | 47407.027 | Diaphragm Assembly | 1 |
| 25 | 32486.015 | Cover Assy | 1 |
| 26 | 64700.004 | Screw | 4 |
| 27 | 47600.007 | Spring | 1 |
| 28 | Not Available | Screw | 1 |
| 29 | Not Available | Lever Assembly | 1 |
| 30 | Not Available | Lever | 1 |
| 31 | 47600.007 | Spring | 1 |
| 32 | 64590.001 | Screw | 1 |
| 33 | Not Available | Spring | 1 |
| 34 | 55555.006 | Spacer | 1 |
| 35 | 41565.008 | O Ring Seal | 1 |
| 36 | 34705.001 | Nut | 1 |
| 37 | Not Available | Washer Spring | 1 |
| 38 | 64700.014 | Screw | 1 |
| 39 | Not Available | Lever | 1 |
| 40 | 12750.016 | Spacer | 1 |
| 41 | 47610.018 | Spring | 1 |
| 42 | 55510.013 | Washer | 1 |
| 43 | 64700.007 | Screw | 3 |
| 44 | Not Available | Cover | 1 |
| 45 | Not Available | Spring | 1 |
| 46 | 47407.008 | Vacuum Diaphragm & Shaft Assy | 1 |
| 47 | Not Available | Body Assembly | 1 |
| 48 | 10085.001 | Shaft & Lever Assembly | 1 |
| 49 | 52135.015 | Plate | 1 |
| 50 | Not Available | Screw | 1 |
| 51 | 64700.008 | Screw | 3 |
| 52 | 41640.005 | Gasket | 1 |
| 53 | 57804.005 | Thermostat Assy | 1 |
| 54 | 41555.001 | Gasket | 1 |
| 55 | 52135.006 | Ring | 1 |
| 56 | 32444.002 | Water Chamber | 1 |
| 57 | 41530.002 | Washer | 1 |
| 58 | 64615.001 | Bolt | 1 |
| 59 | 64615.005 | Screw | 3 |
| 60 | 32610.005 | Split Pin | 2 |
| 61 | 61280.041 | Rod | 1 |
| 62 | 34715.014 | Nut | 2 |
| 63 | 55520.002 | Lock Washer | 2 |
| 64 | 45027.089 | Lever | 1 |
| 65 | Not Available | Screw | 1 |
| 66 | 55525.007 | Washer | 1 |
| 67 | Not Available | Screw | 2 |
| 68 | 55535.001 | Washer External Tooth | 2 |
| 69 | Not Available | Washer | 2 |
| 71 | Not Available | Lever | 1 |
| 72 | Not Available | Bushing | 1 |
| 73 | 55530.002 | Washer | 1 |
| 74 | Not Available | Lever | 1 |
| 75 | 55555.016 | Wahser | 2 |
| 76 | 52130.010 | Shaft Bushing | 4 |
| 77 | Not Available | Cover | 1 |
| 78 | 58202.003 | Geared Carb Sector (Left Hand) | 1 |
| 79 | Not Available | lever | 1 |
| 80 | 47610.012 | Left Hand Return Spring | 1 |
| 81 | 64750.001 | Needle Screw | 2 |
| 82 | 47600.007 | Spring | 2 |
| 83 | 52570.005 | Idle Jet Holder | 2 |
| 84 | 74403.* | Idle Jet | 2 |
| 85 | 41540.014 | Gasket | 1 |
| 86 | 76212.* | Accelerator Pump Jet | 1 |
| 87 | 64290.005 | Accelerator Pump Valve Assembly | 1 |
| 88 | 77201.* | Air Corrector Jet | 2 |
| 89 | 61440.* | Emulsion Tube | 2 |
| 90 | 55530.005 | Washer | 1 |
| 91 | 12765.005 | Bushing | 1 |
| 92 | Not Available | Power Valve | 1 |
| 93 | 64700.014 | Lever Fixing Screw | 1 |
| 94 | 12775.017 | Bushing For Lever | 1 |
| 95 | Not Available | Valve Control Lever | 1 |
| 96 | Not Available | Washer For Lever | 1 |
| 97 | 47610.033 | Spring For Lever | 1 |
| 98 | 32610.005 | Split Pin For Rod | 1 |
| 99 | Not Available | Valve Control Rod | 1 |
| 100 | Not Available | Right Shaft Return Spring | 1 |
| 101 | 61070.002 | Dust Seal Plug | 1 |
