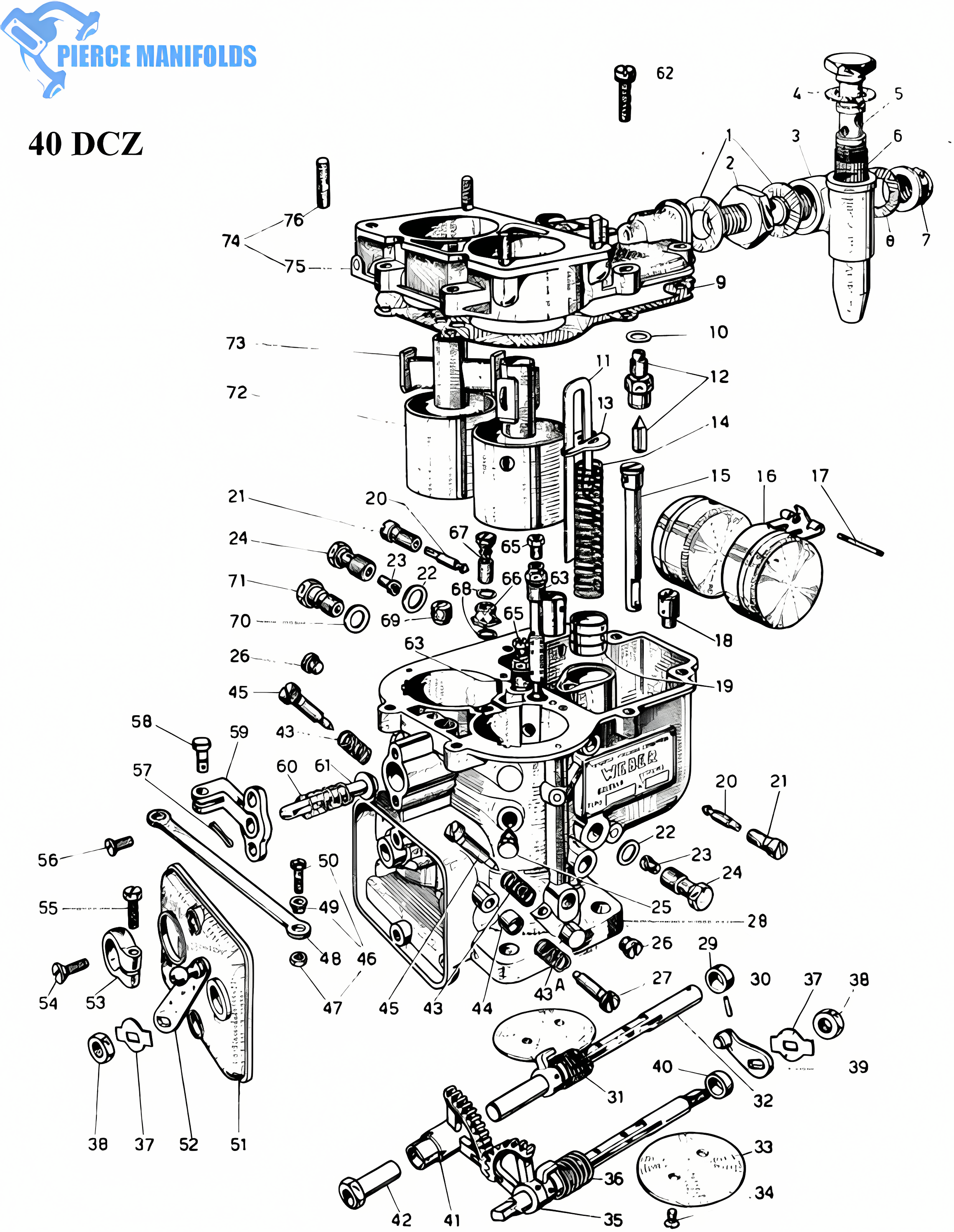

40 DCZ Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 41530.004 | Banjo Bolt Gasket | 2 |
| 2 | 10602.001 | Fuel Banjo Bolt | 1 |
| 3 | Not Available | Fuel Union | 1 |
| 4 | 41530.031 | Fuel Union Gasket | 1 |
| 5 | Not Available | Fuel Union Bolt | 1 |
| 6 | 37022.001 | Fuel Filter | 1 |
| 7 | Not Available | Fuel Union Cap | 1 |
| 8 | 41530.001 | Fuel Union Gasket | 1 |
| 9 | 41705.011 | Top Cover Gasket | 1 |
| 10 | 83102.070 | Needle Valve Gasket | 1 |
| 11 | Not Available | Pump Rod | 1 |
| 12 | 79503.* | Needle & Seat | 1 |
| 13 | Not Available | Pump Rod Clip | 1 |
| 14 | Not Available | Pump Rod Spring | 1 |
| 15 | Not Available | Adjustment Tube | 1 |
| 16 | 41030.003 | Float | 1 |
| 17 | 52000.001 | Float Pin | 1 |
| 18 | 79701.* | Exhaust Valve | 1 |
| 19 | 58602.004 | Plunger | 1 |
| 20 | 74401.* | Idle Jet | 2 |
| 21 | 52570.003 | Jet Holder | 2 |
| 22 | 41540.001 | Main Jet Gasket | 2 |
| 23 | 73801.* | Main Jet | 2 |
| 24 | 52590.001 | Jet Holder | 2 |
| 25 | 64840.003 | Locking Screw | 2 |
| 26 | 61015.001 | Plug | 2 |
| 27 | 64590.003 | Screw | 2 |
| 28 | Not Available | Carburetor Body | 1 |
| 29 | 12750.251 | Brass Spacer | 1 |
| 30 | 58440.001 | Roll Pin | 1 |
| 31 | 47610.003 | Spring | 1 |
| 32 | 10016.409 | Oversized Throttle Shaft | 1 |
| 33 | 64005.057 | Throttle Plate | 2 |
| 34 | 64570.009 | Throttle Plate Screw | 4 |
| 35 | 10016.401 | Oversized Throttle Shaft | 1 |
| 36 | 47610.029 | Spring | 1 |
| 37 | 55520.002 | Shaft Lock Tab | 2 |
| 38 | 34715.010 | Fixing Nut | 2 |
| 39 | 45082.010 | Pump Lever w/ Roller Wheel | 1 |
| 40 | 12750.040 | Brass Spacer | 1 |
| 41 | 58202.006 | Throttle Shaft Gear | 1 |
| 42 | 12800.076 | Excentric | 1 |
| 43 | 47600.007 | Spring | 2 |
| 43a | 47600.007 | Spring | 2 |
| 44 | Not Available | Spacer | 2 |
| 45 | 64750.001 | Idle Mixture Screw | 2 |
| 46 | Not Available | Lever Assembly | 1 |
| 47 | 34705.002 | Nut | 1 |
| 48 | Not Available | lever | 1 |
| 49 | Not Available | Washer | 1 |
| 50 | Not Available | Screw | 1 |
| 51 | Not Available | Cover | 1 |
| 52 | Not Available | Lever | 1 |
| 53-a | 4837A | Gear Clamp aluminum | 1 |
| 53-b | 4837B | Gear Clamp brass | 1 |
| 54 | 64750.004 | Screw | 2 |
| 55 | 64605.001 | Screw | 1 |
| 56 | 64570.002 | Screw | 2 |
| 57 | 32610.005 | Split Pin | 1 |
| 58 | Not Available | Clevis Pin | 1 |
| 59 | Not Available | Cold Start Bracket | 1 |
| 60 | 47600.015 | Spring | 1 |
| 61 | 64370.001 | Pin | 1 |
| 62 | 64700.005 | Top Cover Fixing Screw | 6 |
| 63 | 61455.* | Emulsion Tube | 2 |
| 65 | 77502.* | Air Corrector Jet | 2 |
| 66 | Not Available | Pump Jet | 1 |
| 67 | 64290.005 | Valve | 1 |
| 68 | 41540.014 | Pump Jet Gasket | 2 |
| 69 | Not Available | Air Valve | 1 |
| 70 | 83101.150 | Carb Gasket | 1 |
| 71 | Not Available | Drain Plug | 1 |
| 72 | 71501.* | Main Venturi (Choke) | 2 |
| 73 | Not Available | Auxilary Venturi | 2 |
| 74 | Not Available | Carb Top Cover Assembly | 1 |
| 75 | Not Available | Carb Top Cover | 1 |
| 76 | Not Available | Stud | 4 |
