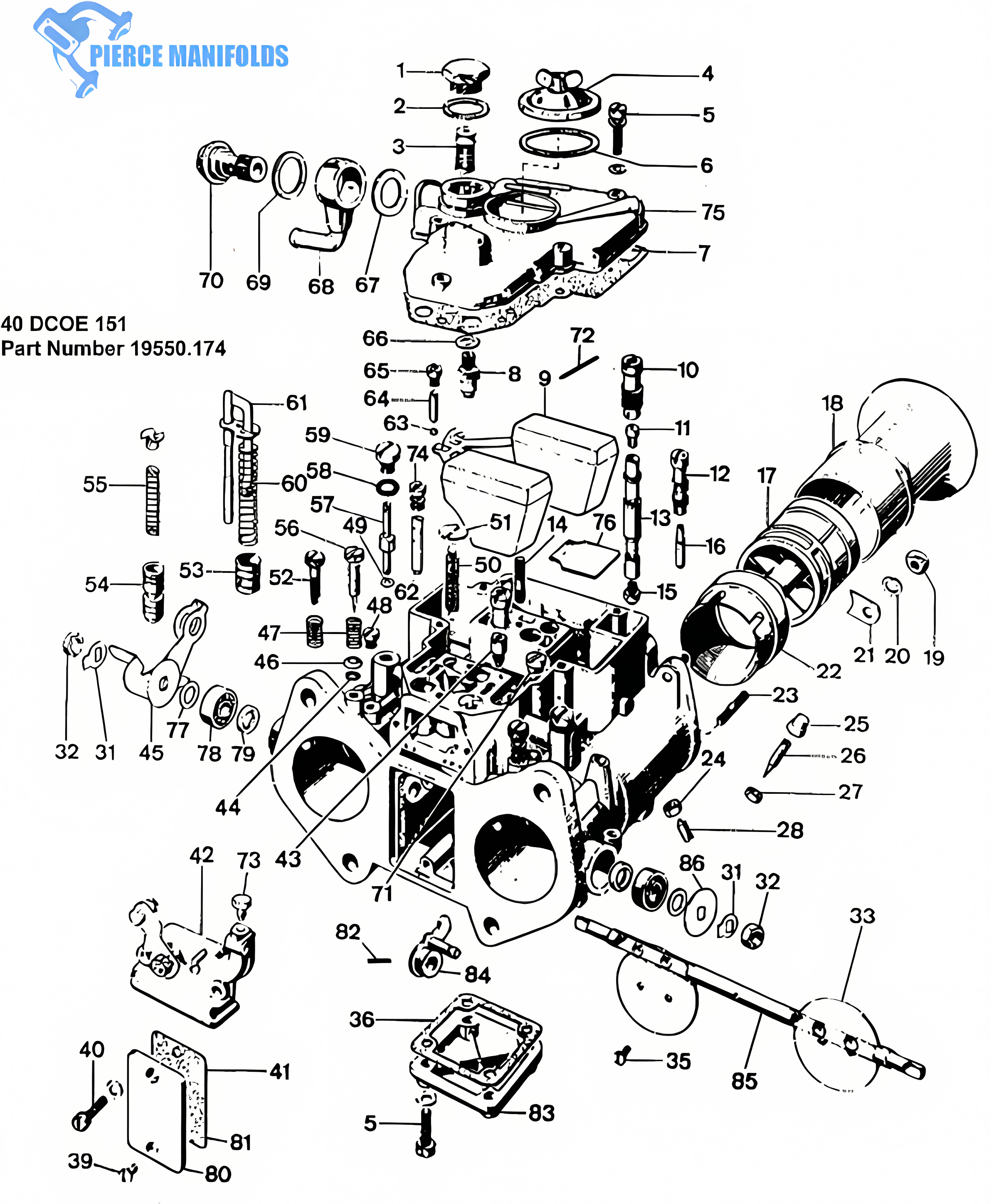

Weber 40 DCOE 151 Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 61002.010 | Filter Cover | 1 |
| 2 | 41530.024 | Filter Cover Gasket | 1 |
| 3 | 37022.010 | Filter Element | 1 |
| 4 | 32376.003 | Jet Inspection Cover | 1 |
| 5 | 64700.001 | Screw | 9 |
| 6 | 41550.002 | Jet Inspection Cover Gasket | 1 |
| 7 | 41715.011 | Rubber Top Cover Gasket | 1 |
| 8 | 79503.* | Needle Valve | 1 |
| 9 | 41030.034 | Plastic Float | 1 |
| 10 | 52580.001 | Emulsion Tube Holder | 2 |
| 11 | 77401.* | Air Corrector Jet | 2 |
| 12 | 52585.006 | Idle Jet Holder | 2 |
| 13 | 61450.* | Emulsion Tube | 2 |
| 14 | 64955.007 | Stud | 1 |
| 15 | 73401.* | Main Jet | 2 |
| 16 | 748xx.* | Idle Jet | 2 |
| 17 | 69912.450 | Auxilary Venturi | 2 |
| 18 | 52840.012 | Air Horn | 2 |
| 19 | 34715.010 | Air Horn Fixing Nut | 4 |
| 20 | 55525.010 | Spring Washer | 4 |
| 21 | 52150.012 | Air Horn Tab | 4 |
| 22 | 72302.* | Main Venturi (Choke) | 2 |
| 23 | 64955.110 | Stud | 4 |
| 24 | 34710.003 | Lock Washer | 2 |
| 25 | 14945.003 | Air By Pass Screw Cap | 2 |
| 26 | 64750.002 | Air By Pass sScrew | 2 |
| 27 | 34705.001 | By Pass Screw Lock Nut | 2 |
| 28 | 64830.006 | Locking Screw | 2 |
| 31 | 55520.004 | Lock Washer | 2 |
| 32 | 34710.003 | Throttle Spindle Nut | 2 |
| 33 | 64005.044 | Throttle Plate | 2 |
| 35 | 64520.027 | Throttle Plate Screw | 4 |
| 36 | 41640.001 | Bottom Cover Gasket | 1 |
| 39 | 64570.009 | Inspection Cover Fixing Screw | 2 |
| 40 | 64700.004 | Choke Cover Fixing Screw | 2 |
| 41 | 41640.021 | Pump Cover Gasket | 1 |
| 42 | 32556.002 | Cold Start Unit L/H | 1 |
| 43 | 79701.* | Exhaust Bleed | 1 |
| 44 | 41565.002 | Idle Mixture Screw O Ring | 2 |
| 45 | 45048.007 | Throttle Lever | 1 |
| 46 | 58000.006 | Idle Mixture Screw Cup Washer | 2 |
| 47 | 47600.007 | Spring | 3 |
| 48 | 64590.008 | Vacuum Take Off Gasket | 2 |
| 49 | 41535.021 | Pump Jet Gasket | 2 |
| 50 | 47605.027 | Throttle Spring | 1 |
| 51 | 52210.006 | Spring Anchor Plate | 1 |
| 52 | 64625.012 | Throttle Stop Screw | 1 |
| 53 | 58602.003 | Pump Plunger | 1 |
| 54 | 64330.003 | Starter Valve | 2 |
| 55 | 47600.105 | Starter Valve Spring | 2 |
| 56 | 64750.003 | Idle Mixture Screw | 2 |
| 57 | 76801.* | Pump Jet | 2 |
| 58 | 41565.009 | Pump Jet O Ring | 2 |
| 59 | 61015.008 | Pump Jet Cover | 2 |
| 60 | 47600.064 | Pump Rod Spring | 1 |
| 61 | 10410.015 | Pump Rod | 1 |
| 62 | 75507.085 | Starter Jet | 2 |
| 63 | 58300.003 | Pump Demand Valve Ball | 2 |
| 64 | 52730.001 | Pump Demand Weight | 2 |
| 65 | 61015.006 | Pump Demand Valve Cover | 2 |
| 66 | 83102.120 | Needle Valve Gasket | 1 |
| 67 | 41530.031 | Fuel Union Gasket | 1 |
| 68 | 10536.035 | Fuel Union | 1 |
| 69 | 41530.024 | Fuel Union Gasket | 1 |
| 70 | 12715.008 | Fuel Union Bolt | 1 |
| 71 | 61015.009 | Progression Hole Inspection Cover | 2 |
| 72 | 52000.001 | Float Pin | 1 |
| 73 | 64605.017 | Choke Cable Clamp | 1 |
| 74 | 77505.150 | Starter Air Jet | 2 |
| 75 | 31734.198 | Carburetor Top Cover | 1 |
| 76 | 52130.003 | Plate | 1 |
| 77 | 55510.128 | Washer | 2 |
| 78 | 32650.003 | Sealed Bearing | 2 |
| 79 | 41575.025 | O' Ring | 2 |
| 80 | 52135.024 | Inspection Cover | 2 |
| 82 | 58445.001 | Pin | 1 |
| 83 | 32374.008 | Bottom Bowl Cover | 1 |
| 84 | 45082.005 | Pump Cam Lever | 1 |
| 85 | 10005.447 | Throttle Shaft | 1 |
| 86 | 99024.258 | Washer | 1 |
