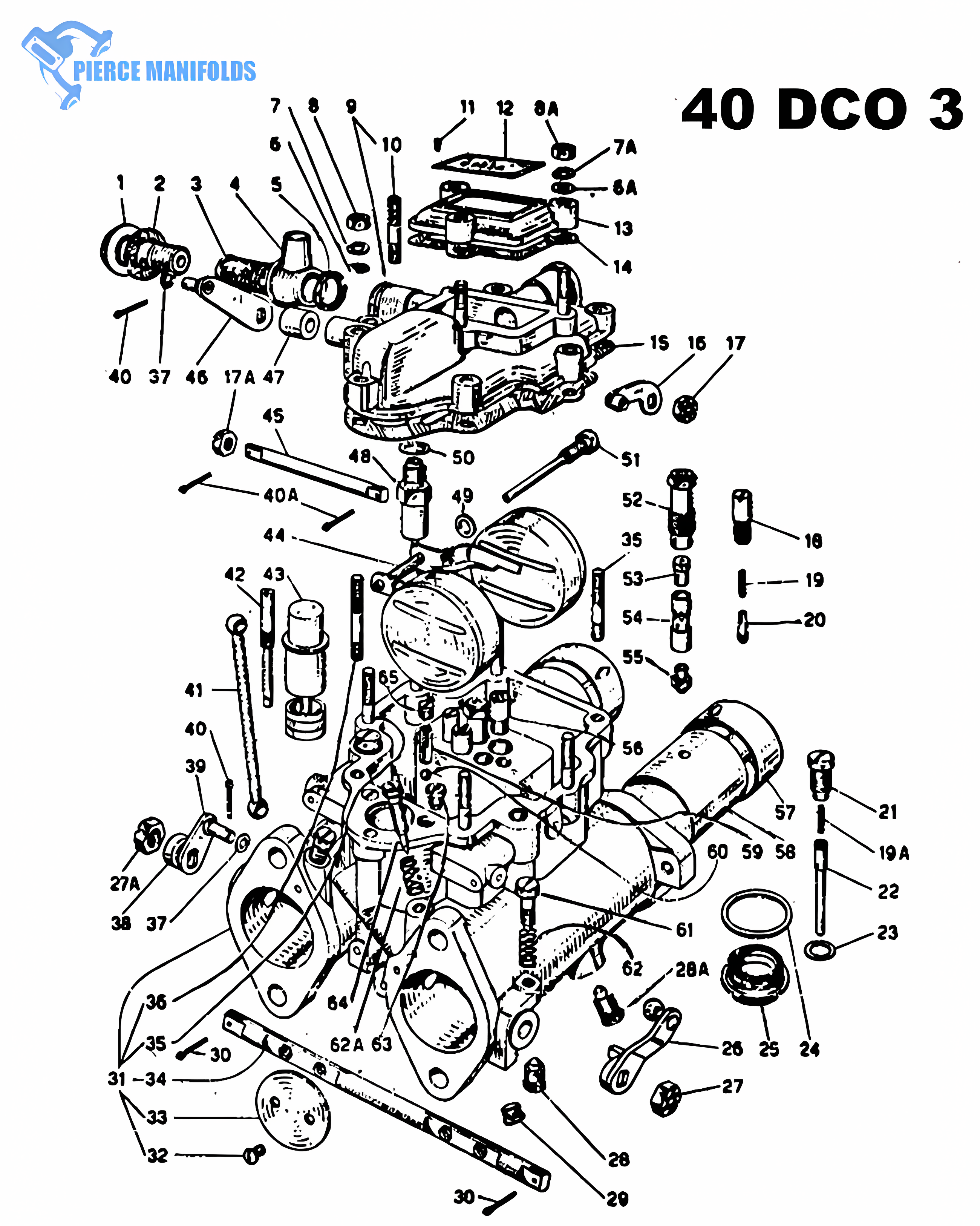

40 DCO3 Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 12715.003 | Banjo Bolt | 1 |
| 2 | 41530.004 | Gasket | 1 |
| 3 | 37022.001 | fuel Filter | 1 |
| 4 | 10354.006 | Fuel Union | 1 |
| 5 | 41530.001 | Gasket | 1 |
| 6-A | 55510.034 | Carburetor Washer | 10 |
| 7-A | 55525.001 | Spring Washer | 10 |
| 8-A | 34700.002 | Nut | 10 |
| 9 | TS 1216A | Carburetor Top Cover | 1 |
| 10 | 64955.029 | Stud | 3 |
| 11 | TS 517 | Screw | 4 |
| 12 | TS 765 | Carburetor Plate Weber ID Plate | 1 |
| 13 | TS 712 | Jet Inspection Lid | 1 |
| 14 | 41640.016 | Jet Inspection Lid Gasket | 1 |
| 15 | TS 718 | Top Cover Gasket | 1 |
| 16 | TS 734A | Lever | 1 |
| 17-A | TS 52 | Nut | 2 |
| 18 | 818 | Idle Jet Holder | 2 |
| 19-A | 817 | Spring | 4 |
| 20 | 820.+++ | nan | 2 |
| 21 | TS 723 | Pump Jet Holder | 2 |
| 22 | 76803.* | Pump Jet | 2 |
| 23 | 41540.015 | Washer | 2 |
| 24 | 41530.035 | Gasket | 1 |
| 25 | 61002.005 | Plug | 1 |
| 26 | TS 1213A | Lever | 1 |
| 27-A | 34740.002 | Nut | 2 |
| 28-A | TS 1222 | Screw | 4 |
| 29 | TS 240 | Inspection Screw | 2 |
| 30 | 133 | Split Pin | 2 |
| 31 | Not Serviced | Complete Carburetor Body | 1 |
| 32 | 64570.009 | Throttle Plate Screw | 4 |
| 33 | 64005.059 | Throttle Plate | 2 |
| 34 | 10016.415 | Throttle Shaft | 1 |
| 35 | 64955.030 | Stud | 6 |
| 36 | TS 714 | Stud | 1 |
| 37 | TS 244 | Washer | 2 |
| 38 | TS 729 | Spacer | 1 |
| 39 | TS 750 | Pump Control Lever | 1 |
| 40 | 324* | Split Pin | 4 |
| 41 | TS 721 | Pump Control Lever | 2 |
| 42 | 3916.+++ | Pump Exhaust Screw | 2 |
| 43 | 58612.001 | Plunger | 1 |
| 44 | TS 752A | Float | 1 |
| 45 | 10080.002 | Pump Control Shaft | 1 |
| 46 | TS 747A | Pump Control Lever | 1 |
| 47 | TS 725 | Spacer | 1 |
| 48 | 79502.* | Needle & Seat | 1 |
| 49 | 1937 | Gasket | 1 |
| 50 | 41530.049 | Gasket | 1 |
| 51 | TS 744A | Float Fulcrum Screw | 1 |
| 52 | 52580.002 | Emulsion Tube Holder | 2 |
| 53 | 77401.* | Air Corrector Jet | 2 |
| 54 | TS 1211 | Emullsion Tube | 2 |
| 55 | 73401.* | Main Jet | 5 |
| 56 | TS 713 | Air Idling Jet | 2 |
| 57 | TS 774 | Auxiliary Venturi | 2 |
| 58 | TS 759 | Main Venturi (Choke) | 2 |
| 59 | 52730.001 | Pump Valve Weight | 2 |
| 60 | 58300.003 | Pump Demand Valve Stuffing Ball | 2 |
| 61 | 64625.012 | Throttle Stop Screw | 1 |
| 62A | 47600.007 | Spring | 3 |
| 63 | 937A | Intake Valve | 1 |
| 64 | 64750.001 | Idle Mixture Screw | 2 |
| 65 | 61015.006 | Pump Demand Valve Cover | 2 |
