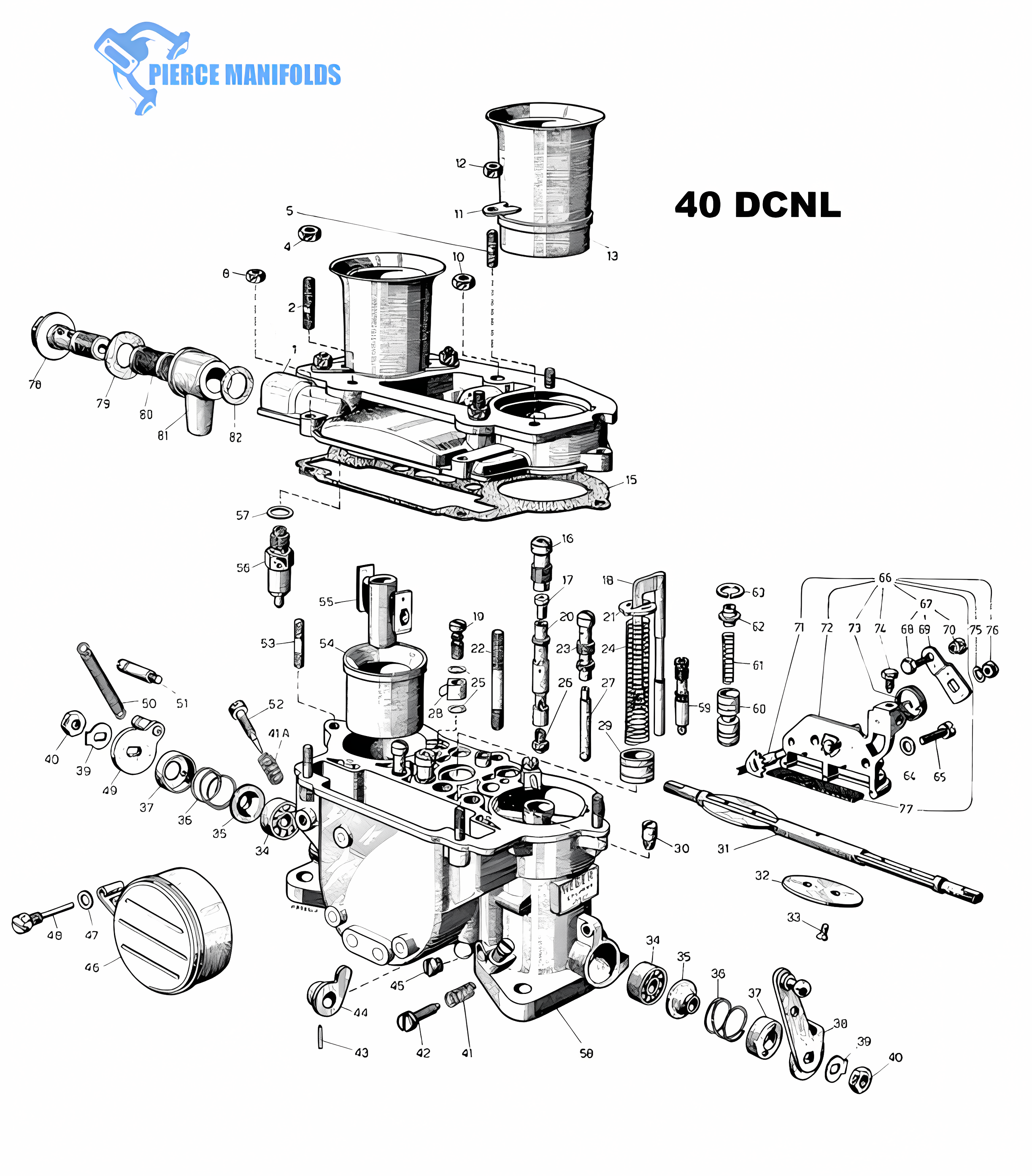

40 DCNL Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Carburetor Top | 1 |
| 2 | 64955.104 | Stud | 2 |
| 4 | Call for Info | Nut | 2 |
| 5 | Call for Info | Stud | 4 |
| 8 | 34725.003 | Nut | 4 |
| 10 | Call for Info | Nut | 1 |
| 11 | Call for Info | Air Horn Tab | 4 |
| 12 | 34725.003 | Nut | 4 |
| 13 | Call for Info | Air Horn | 2 |
| 15 | 41705.018 | Top Cover Gasket | 1 |
| 16 | 52580.001 | Emulsion Tube Holder | 2 |
| 17 | 77401.* | Air Corrector Jet | 2 |
| 18 | CALL | Pump Rod | 1 |
| 19 | 64290.005 | Pump Demand Valve | 2 |
| 20 | 61450.* | Emulsion Tube | 2 |
| 21 | 52140.007 | Pump Spring Retainer | 1 |
| 22 | 64955.109 | Stud | 2 |
| 23 | 77903.* | Jet Holder | 2 |
| 24 | 47600.103 | Spring | 1 |
| 25 | 41540.014 | Pump Jet Gasket | 4 |
| 26 | 73401.* | Main Jet | 2 |
| 27 | Call for Info | Idle Jet | 2 |
| 28 | Call for Info | Pump Jet | 2 |
| 29 | 58602.004 | Plunger | 1 |
| 30 | 79701.* | Exhaust Valve | 1 |
| 31 | 10005.438 | Throttle Shaft | 1 |
| 32 | 64005.059 | Throttle Plate | 2 |
| 33 | 64520.027 | Throttle Plate Screw | 4 |
| 34 | 32650.003 | Sealed Bearing | 2 |
| 35 | 41570.001 | Leather Seal | 2 |
| 36 | 47600.063 | Spring | 2 |
| 37 | 58000.007 | Retaining Cover | 2 |
| 38 | Not Available | Lever | 1 |
| 39 | 55520.004 | Shaft Lock Tab | 2 |
| 40 | 34710.003 | Throttle Spindle Nut | 2 |
| 41 | 47600.007 | Spring | 1 |
| 41a | 47600.007 | Spring | 2 |
| 42 | 64625.012 | Throttle Stop Screw | 1 |
| 43 | 58445.001 | Fixing Pin | 1 |
| 44 | Not Available | nan | 1 |
| 45 | 61015.001 | Plug | 2 |
| 46 | 41015.008 | Brass Float | 1 |
| 47 | 41530.017 | Gasket | 1 |
| 48 | Call for Info | Float Pin Screw | 1 |
| 49 | Call for Info | Lever | 1 |
| 50 | 47605.018 | Spring | 1 |
| 51 | Not Available | nan | 1 |
| 52 | 64750.001 | Idle Mixture Screw | 2 |
| 53 | 64955.029 | Stud | 4 |
| 54 | Call for Info | Main Venturi (Choke) | 2 |
| 55 | Call for Info | Auxiliary Venturi | 2 |
| 56 | 79504.* | Needle & Seat | 1 |
| 57 | 41530.049 | Gasket | 1 |
| 58 | Not Available | Carburetor Body | 1 |
| 59 | 75605.* | Starter Jet | 2 |
| 60 | 64330.003 | Starter Valve | 2 |
| 61 | 47600.005 | Spring | 2 |
| 62 | 12775.004 | Bushing | 2 |
| 63 | 10140.010 | Clip | 2 |
| 64 | 55510.038 | Washer | 2 |
| 65 | 64700.004 | Choke Cover Fixing Screw | 2 |
| 66 | 32556.005 | Pump Cover Assembly Including | 1 |
| 67 | Not Available | -Cold Start Lever Assembly | 1 |
| 68 | 64800.002 | -Cold Start Bolt | 1 |
| 69 | Not Available | -Cold Start Lever | 1 |
| 70 | 34720.002 | -Cold Start Nut | 1 |
| 71 | Not Available | nan | 1 |
| 72 | Not Available | -Cold Start Plate | 1 |
| 73 | 47610.042 | -Spring | 1 |
| 74 | 64605.017 | -Choke Cable Clamp | 1 |
| 75 | 55525.010 | -Spring Washer | 1 |
| 76 | 34715.010 | -Fixing Nut | 1 |
| 77 | 37000.016 | -Filter | 1 |
| 78 | Not Available | Banjo Bolt | 1 |
| 79 | 41530.004 | Gasket | 1 |
| 80 | 37022.001 | Fuel Filter | 1 |
| 81 | 10354.006 | Fuel Union | 1 |
| 82 | 41530.001 | Gasket | 1 |
