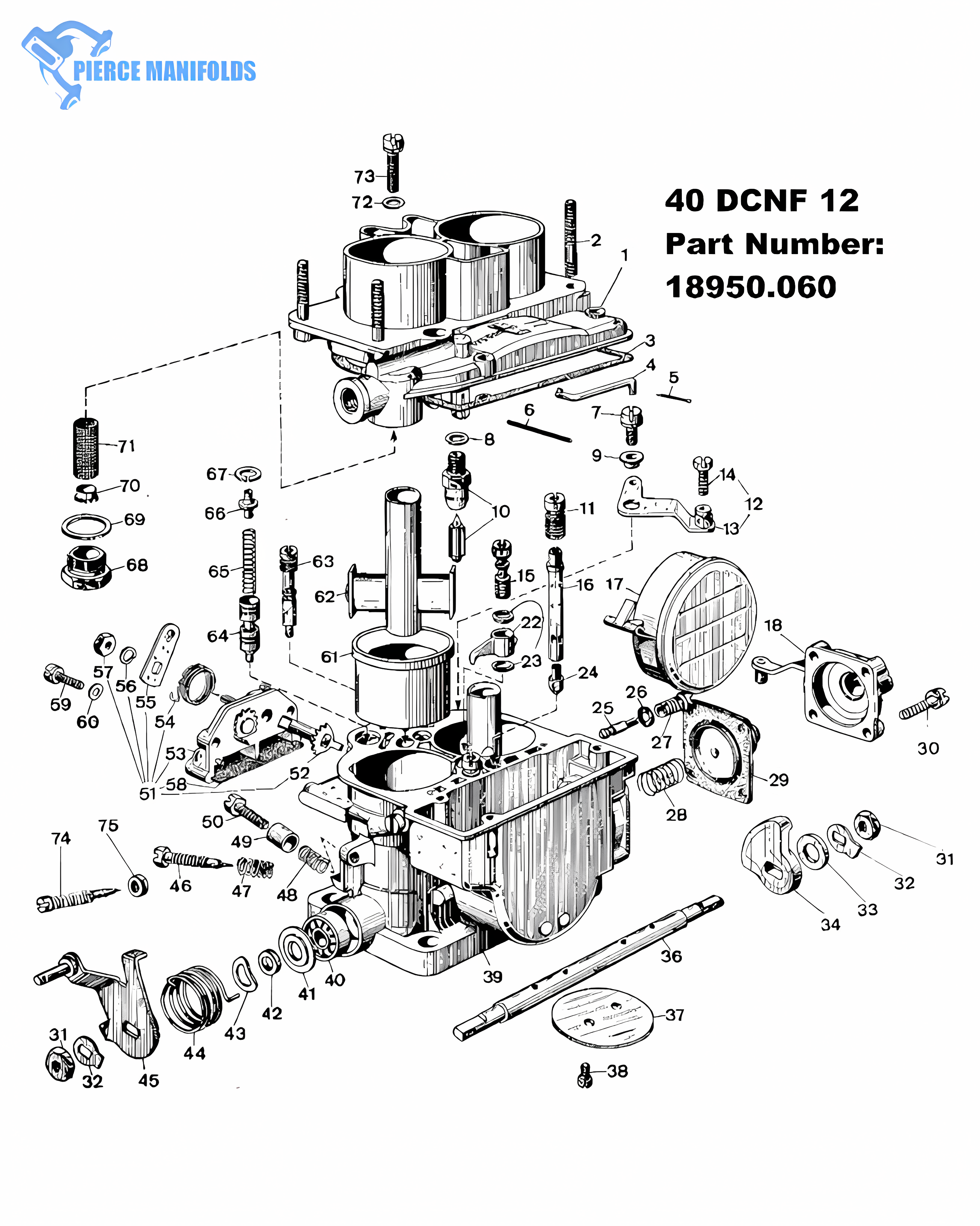

40 DCNF Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31716.082 | Carburetor Top Cover | 1 |
| 2 | 64955.007 | Stud | 4 |
| 3 | 41705.029 | Top Cover Gasket | 1 |
| 4 | 61280.056 | Choke Control Rod | 1 |
| 5 | 32610.005 | Split Pin | 1 |
| 6 | 52000.010 | Float Pin | 1 |
| 7 | 64700.012 | Screw | 1 |
| 8 | 83102.070 | Needle Valve 'O" Ring | 1 |
| 9 | 12775.010 | Bushing | 1 |
| 10 | 79503.* | Needle Valve | 1 |
| 11 | 77501.* | Air Corrector Jet | 2 |
| 12 | 45096.020 | Choke Control Lever | 1 |
| 13 | Not Available | Lever | 1 |
| 14 | 64615.004 | Screw | 1 |
| 15 | 64290.005 | Pump Demand Valve | 1 |
| 16 | 61450.* | Emulsion Tube | 2 |
| 17 | 41015.015 | Float | 1 |
| 18 | 32486.041 | Pump Cover | 1 |
| 22 | 76215.* | Pump Jet | 1 |
| 23 | 41540.014 | Pump Jet 'O' Ring | 2 |
| 24 | 73405.* | Main Jet | 2 |
| 25 | 74405.* | Idle Jet | 2 |
| 26 | 41565.002 | Idle Jet 'O' Ring | 2 |
| 27 | 52570.006 | Idle Jet Holder | 2 |
| 28 | 47600.107 | Pump Spring | 1 |
| 29 | 47407.261 | Pump Diaphragm | 1 |
| 30 | 64700.006 | Pump Cover Screw | 4 |
| 31 | 34710.003 | Throttle Spindle Nut | 2 |
| 32 | 55520.004 | Lock Washer | 2 |
| 33 | 12750.032 | Spacer | 1 |
| 34 | 14852.011 | Pump Cam | 1 |
| 36 | 10005.211 | Throttle Shaft | 1 |
| 37 | 64005.020 | Throttle Valve | 2 |
| 38 | 64520.027 | Throttle Valve Screw | 4 |
| 40 | 32650.003 | Sealed Bearing | 2 |
| 41 | 58000.017 | Bearing Cover | 2 |
| 42 | 12750.053 | Spacer Bushing | 2 |
| 43 | 55530.010 | Spring Washer | 2 |
| 44 | 47610.078 | Throttle Return Spring | 1 |
| 45 | 45041.049 | Throttle Control Lever | 1 |
| 46 | 64755.007 | Idle Mixture Screw | 2 |
| 47 | 47600.007 | Idle Mixture Screw Spring | 2 |
| 48 | 47600.007 | Throttle Stop Screw Spring | 1 |
| 49 | 12785.084 | Bushing | 1 |
| 50 | 64625.012 | Throttle Stop Screw Spring | 1 |
| 51 | 32556.017 | Starter Cover - Including | 1 |
| 52 | 10085.009 | -Choke Control Spindle | 1 |
| 53 | 32556.016 | - Cover | 1 |
| 54 | 47610.043 | -Return Spring | 1 |
| 55 | 45025.089 | - Choke Lever | 1 |
| 56 | 55525.010 | -Spring Washer | 1 |
| 57 | 34715.010 | - Nut | 1 |
| 58 | 37000.016 | Filter Gauze | 1 |
| 59 | 64700.004 | Choke Cover Screw | 2 |
| 60 | 55510.038 | Washer | 2 |
| 61 | 72129.* | Main Venturi (Choke Tube) | 2 |
| 62 | 71107.* | Auxiliary Venturi | 2 |
| 63 | 75605.* | Starter Jet | 2 |
| 64 | 64330.008 | Starter Valve Piston | 2 |
| 65 | 47600.139 | Starter Valve Spring | 2 |
| 66 | 12775.024 | Spring Guide | 2 |
| 67 | 10140.002 | Spring Clip | 2 |
| 68 | 61002.010 | Fuel Filter Inspection Cover | 1 |
| 69 | 41530.024 | Fuel Filter Cover Gasket | 1 |
| 70 | 61060.001 | Filter Washer | 1 |
| 71 | 37020.002 | Fuel Filter | 1 |
| 72 | 55510.034 | Washer | 4 |
| 73 | 64700.005 | Top Cover Screw | 4 |
| 74 | 64750.002 | Air By-Pass Screw | 2 |
| 75 | 34705.001 | Air By-Pass Screw Locking Nut | 2 |
