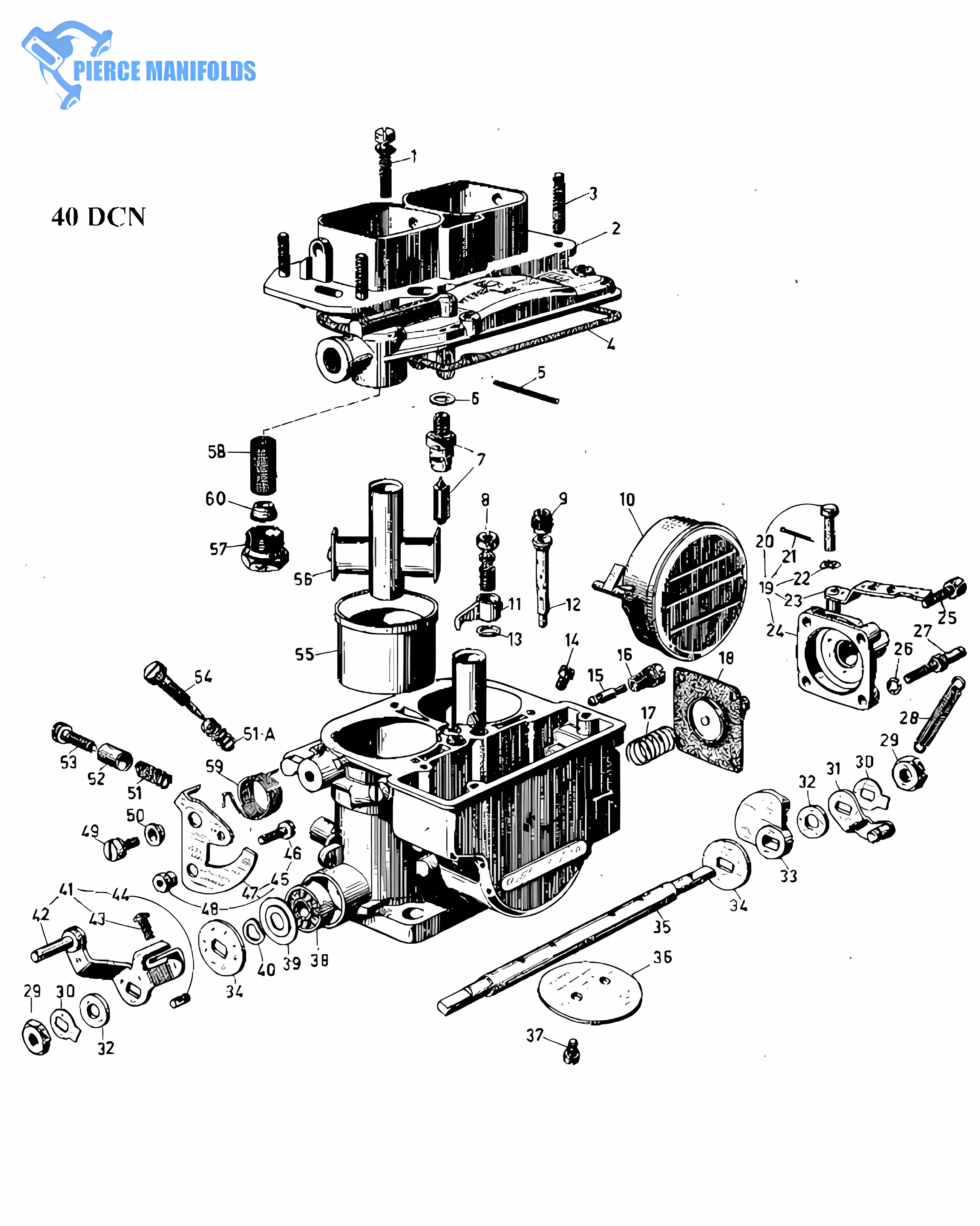

40 DCN Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 64700.005 | Top Cover Fixing Screw | 4 |
| 2 | 31716.029 | Top Cover | 1 |
| 3 | 64955.004 | Top Cover Stud | 4 |
| 4 | 41705.026 | Top Cover Gasket | 1 |
| 5 | 52000.01 | Float Pin | 1 |
| 6 | 83102.07 | Needle Valve Gasket | 1 |
| 7 | 79503.* | Needle & Seat | 1 |
| 8 | 64290.005 | Pump Demand Valve | 1 |
| 9 | 77201.* | Air Corrector Jet | 2 |
| 10 | 41015.012 | Brass Float | 1 |
| 11 | 76215.* | Pump Jet | 1 |
| 12 | 61440.* | Emulsion Tube | 2 |
| 13 | 41540.014 | Pump Jet Gasket | 1 |
| 14 | 73801.* | Main Jet | 2 |
| 15 | 74401.* | Idle Jet | 2 |
| 16 | 52570.005 | Idle Jet Holder | 2 |
| 17 | 47600.107 | Accelerator Pump Spring | 1 |
| 18 | 47407.249 | Accelerator Pump Diaphragm | 1 |
| 19 | 32486.013 | Accelerator Pump Cover Assembly Includes | 1 |
| 20 | 52010.033 | Pin | 1 |
| 21 | Not Available | Split Pin | 1 |
| 22 | Not Available | Washer | 1 |
| 23 | 45089.001 | Pump Pivot Lever | 1 |
| 24 | 32484.001 | Accelerator Pump Cover | 1 |
| 25 | 64700.004 | Choke Cover Fixing Screw | 3 |
| 26 | 55525.007 | Lock Washer | 1 |
| 27 | 52025.001 | Pin | 1 |
| 28 | 47605.018 | Spring | 1 |
| 29 | 34710.003 | Throttle Spindle Nut | 2 |
| 30 | 55520.004 | Shaft Lock Tab | 2 |
| 31 | 45082.002 | Carb Lever | 1 |
| 32 | 55510.006 | Washer | 2 |
| 33 | 14852.042 | Pump Cam | 1 |
| 34 | 55555.005 | Washer | 2 |
| 35 | 10005.408 | Throttle Shaft | 1 |
| 36 | 64005.020 | Throttle Plate | 2 |
| 37 | 64520.027 | Screw | 4 |
| 38 | 32650.003 | Sealed Bearing | 2 |
| 39 | 58000.017 | Bearing Cover | 2 |
| 40 | 55530.005 | Washer | 2 |
| 41 | 45041.011 | Throttle Lever Assembly Includes | 1 |
| 42 | Not Available | Lever | 1 |
| 43 | Not Available | Screw | 1 |
| 44 | 34705.001 | Nut | 1 |
| 45 | Not Available | Fast Idle Lever Assembly Includes | 1 |
| 46 | 64800.002 | Bolt with Hole | 1 |
| 47 | Not Available | Fast Idle Lever | 1 |
| 48 | 34720.002 | Nut | 1 |
| 49 | 64700.012 | Lever Fixing Screw | 1 |
| 50 | 12775.010 | Bushing For Lever | 1 |
| 51 | 47600.007 | Spring | 1 |
| 51a | 47600.007 | Spring | 2 |
| 52 | 12785.084 | Bushing | 1 |
| 53 | 64625.012 | Throttle Stop Screw | 1 |
| 54 | 64750.001 | Idle Mixture Screw | 2 |
| 55 | 72129.* | Main Venturi (Choke) | 2 |
| 56 | 71102.* | Auxiliary Venturi | 2 |
| 57 | 61002.018 | Strainer Inspection Plug | 1 |
| 58 | 37022.01 | Fuel Filter | 1 |
| 59 | 47610.003 | Spring | 1 |
| 60 | Not Available | Filter Washer | 1 |
