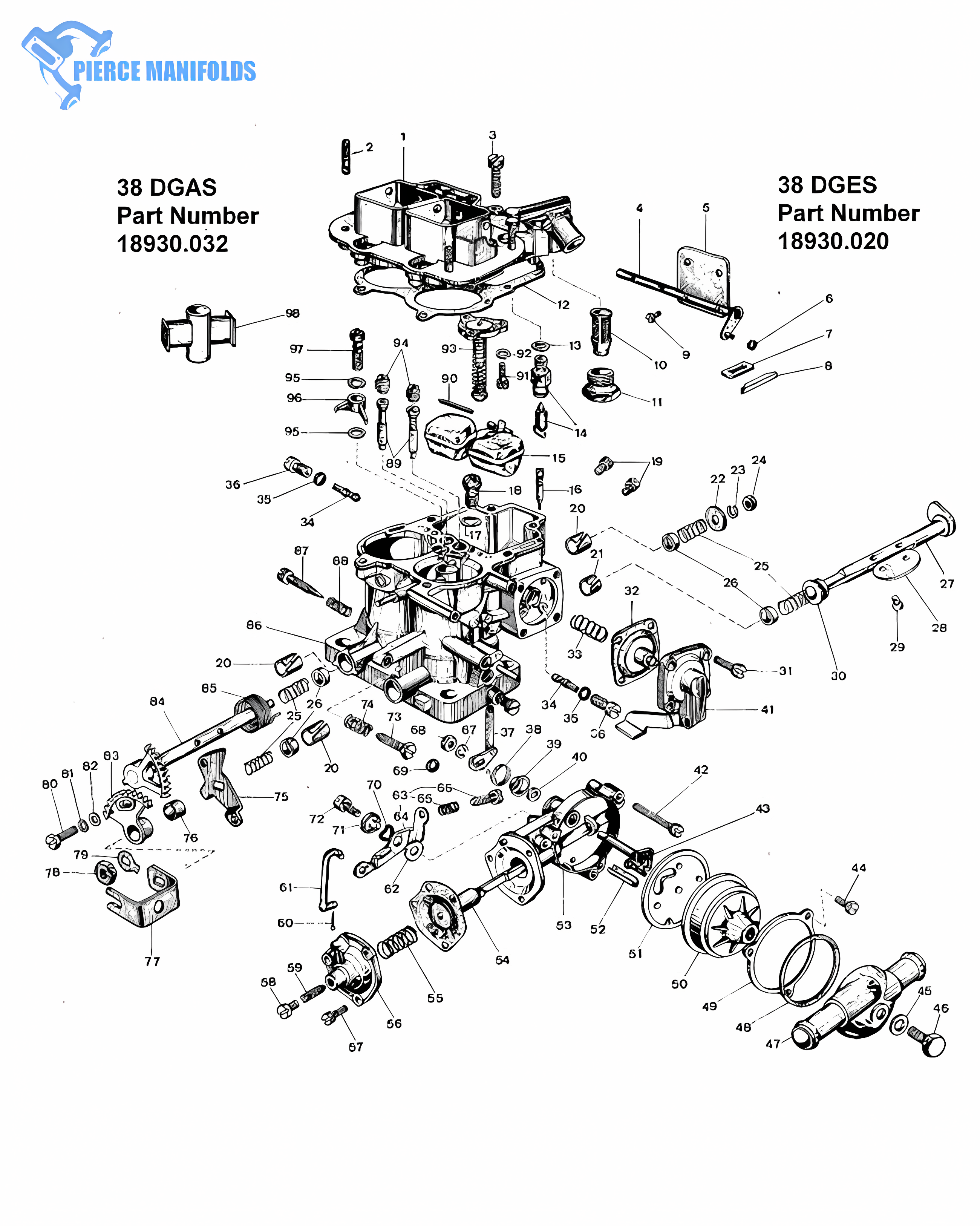

38 DGES Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Carburetor Cover Assy. | 1 |
| 2 | 64955.002 | Stud Bolt | 4 |
| 3 | 64700.001 | Carb Cover Fixing | 6 |
| 4 | 10020.221 | Choke Shaft & Lever Assy. | 1 |
| 5 | 64010.007 | Starting Throttle Valve | 2 |
| 6 | 10140.501 | Spring Ring | 1 |
| 7 | 52135.018 | Dust Seal Plate | 1 |
| 8 | 61070.002 | Dust Seal Plug | 1 |
| 9 | 64525.003 | Choke Plate Fixing Screw | 4 |
| 10 | 37022.01 | Strainer Assy. | 1 |
| 11 | 61002.018 | Strainer Inspection Plug | 1 |
| 12 | 41705.035 | Carb Cover Gasket | 1 |
| 13 | 83102.070 | Needle Valve Gasket | 1 |
| 14 | 79519.* | Needle Valve Assy. | 1 |
| 15 | 41030.019 | Float Assy. | 1 |
| 16 | 64900.001 | Pump Discharge Blanking Needle | 1 |
| 17 | 41530.013 | Power Valve Gasket | 1 |
| 18 | 64235.016 | Power Valve Assemby | 1 |
| 19 | 73801.* | Main Jet | 2 |
| 20 | 52130.01 | Plate For Shafts | 3 |
| 21 | 52130.011 | Plate For Shafts | 1 |
| 22 | 55510.081 | Washer For Secondary Shaft | 1 |
| 23 | 55525.001 | Spring Washer | 1 |
| 24 | 34705.001 | Secondary Shaft Fixing Nut | 1 |
| 25 | 47600.027 | Bush Retaining Spring | 4 |
| 26 | 12750.085 | Bushing For Shafts | 4 |
| 27 | 10015.27 | Primary Main Shaft Assembly | 1 |
| 28 | 64005.015 | Throttle Valve | 1 |
| 29 | 64520.027 | Throttle Valve fixing Screw | 4 |
| 30 | 12765.047 | Spacer | 4 |
| 31 | 64700.006 | Pump Cover Screw | 1 |
| 32 | 47407.249 | Accelerator Pump Diaphragm Assy. | 1 |
| 33 | 47600.107 | Pump Loading Spring | 1 |
| 34 | 74403.* | Idling Jet | 2 |
| 35 | 41565.002 | Gasket For Idling Jet Holder | 2 |
| 36 | 52570.006 | Idling Jet Holder | 2 |
| 37 | 45034.09 | Choke Control Lever Assembly | 1 |
| 38 | 47610.08 | Spring For Fast Idle Cam | 1 |
| 39 | 58000.018 | Spring Retaining Cover | 1 |
| 40 | 55555.029 | Washer For Shaft | 1 |
| 41 | 32486.076 | Accel. Pump Cover Assy. | 1 |
| 42 | 64700.008 | Choke Fixing Screw | 3 |
| 43 | 10085.033 | Auto Choke Shaft & Lever Assy | 1 |
| 44 | 64615.005 | Screw For Plate | 1 |
| 45 | 41530.002 | Seal For Water Cover Fixing Screw | 1 |
| 46 | 64610.014 | Water Cover Fixing Screw | 1 |
| 47 | 32444.005 | Auto Choke Water Chamber | 1 |
| 48 | 41555.001 | Water Cover Gasket | 1 |
| 49 | 52135.006 | Thermostat Assy Locking Ring | 1 |
| 50 | 57804.139 | Auto Choke Thermostat Assy | 1 |
| 50a | 57804.333 | Electric Choke Element | 1 |
| 51 | 41640.005 | Gasket For Auto Choke Body Assy | 1 |
| 52 | 52130.012 | Plate For Auto Choke Shaft | 1 |
| 53 | 57804.074 | Auto Choke Body Assy | 1 |
| 54 | 47407.056 | Choke Diaphragm Assy | 1 |
| 55 | 47600.141 | Spring For Diaphagm | 1 |
| 56 | 32384.02 | Auto Choke Cover | 1 |
| 57 | 64700.007 | Screw Securint Auto Choke Cover | 3 |
| 58 | 61015.003 | Plug | 1 |
| 59 | 64595.005 | Diaphragm Adjusting Screw | 1 |
| 60 | 32610.005 | Pin For Fast Idle Rod | 1 |
| 61 | 61280.082 | Fast Idling Control Rod | 1 |
| 62 | 55510.003 | Washer For Fast Idle Loose Lever | 1 |
| 63 | 45041.053 | Fast Idling Loose Lever Assembly | 1 |
| 64 | 45039.056 | Loose Lever Fast Idle | 1 |
| 65 | 47600.007 | Loose Lever Spring | 1 |
| 66 | 64590.004 | Loose Lever Screw | 1 |
| 67 | Not Available | Spring Washer | 1 |
| 68 | Not Available | Throttle Shaft Fixing Nut | 1 |
| 69 | 41565.008 | Auto Choke 'O" Ring Seal | 1 |
| 70 | 55530.005 | Washer For Loose Lever | 1 |
| 71 | 12765.042 | Bushing For Fast Idle Loose Lever | 1 |
| 72 | 64700.014 | Fast Idle Loose Lever Screw | 1 |
| 73 | 64525.017 | Throttle Adjusting Screw | 1 |
| 74 | 47600.007 | Spring For Throttle Adjusting Screw | 1 |
| 75 | 45046.023 | Toothed Sector Control Lever | 1 |
| 76 | 12750.092 | Bushing For Toothed Sector | 1 |
| 77 | 45136.029 | Throttle Control Lever | 1 |
| 78 | 34715.014 | Primary Shaft Fixing Nut | 1 |
| 79 | 55520.002 | Lock Washer | 1 |
| 80 | Not Available | Toothed Sector Fixing Screw | 1 |
| 81 | 55535.001 | Wave Washer | 1 |
| 82 | Not Available | Flat Washer | 1 |
| 83 | 58202.024 | Primary Toothed Sector | 1 |
| 84 | 10015.354 | Secondary Main Shaft Assembly | 1 |
| 85 | 47610.089 | Shaft Return Spring | 1 |
| 86 | Not Available | Carburetor Body | 1 |
| 87 | 64750.001 | Idle Adjusting Screw | 2 |
| 88 | 47600.007 | Spring For Idle Adjusting Screw | 2 |
| 89 | 61440.* | Emulsion Tube | 2 |
| 90 | 52000.015 | Float Fixing Pin | 1 |
| 91 | 64700.007 | Power Valve Retaining Screw | 3 |
| 92 | 55510.038 | Washer For Control Valve Screw | 3 |
| 93 | 57804.025 | Carb Power Valve Assy | 1 |
| 94 | 77201.* | Air Corrector Jet | 1 |
| 95 | 41540.014 | Pump Jet Gasket | 2 |
| 96 | 76212.* | Accelerator Pump Jet | 1 |
| 97 | 64290.024 | Pump Delivery Valve Assy | 1 |
| 98 | 70936.45 | Auxiliary Venturi | 2 |
| 99 | 57804.509 | Choke Device 37-43, 52-59,67,68 | 1 |
