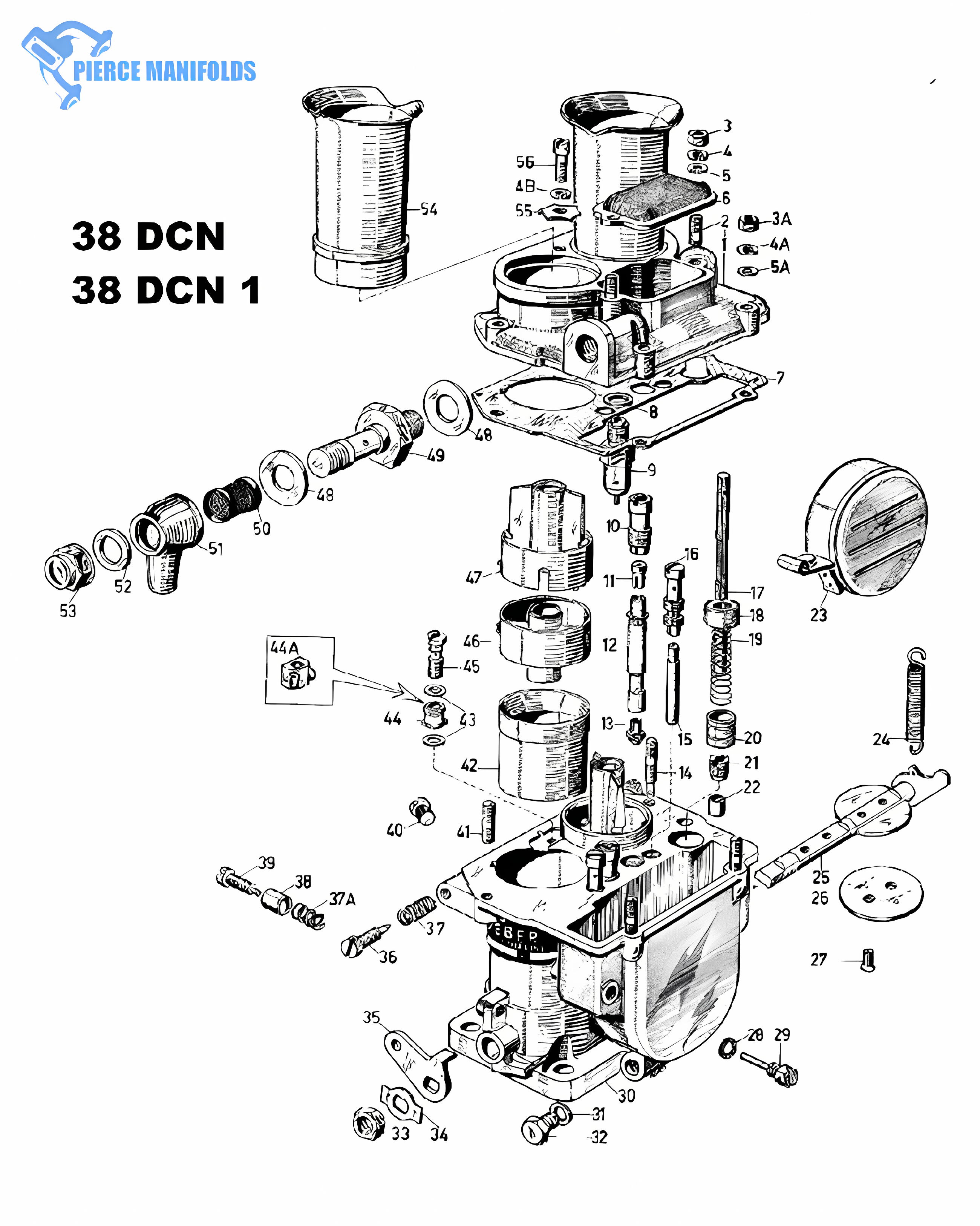

38 DCN Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Carburetor Top Cover | 1 |
| 2 | 64955.009 | Stud | 2 |
| 3 | 34705.001 | Nut | 2 |
| 3a | 34705.001 | Nut | 4 |
| 4 | 55525.001 | Spring Washer | 2 |
| 4a | 55525.001 | Spring Washer | 4 |
| 4b | 55525.001 | Spring Washer | 1 |
| 5 | 55510.034 | Carburetor Washer | 2 |
| 5a | 55510.034 | Carburetor Washer | 4 |
| 6 | Not Available | Jet Cover | 1 |
| 7 | 41705.006 | Top Cover Gasket | 1 |
| 8 | 41530.049 | Gasket | 1 |
| 9 | 79406.175 | Needle & Seat | 1 |
| 10 | 52580.001 | Emulsion Tube Hilder | 2 |
| 11 | 77401.* | Air Corrector Jet | 2 |
| 12 | 61450.* | Emulsion Tube | 2 |
| 13 | 73401.* | Main Jet | 2 |
| 14 | Not Available | Stud | 1 |
| 15 | TS1007.XXX | Idle Jet | 2 |
| 16 | 77903.* | Idle Jet Holder | 2 |
| 17 | Not Available | Pump Rod | 1 |
| 18 | Not Available | Collar | 0 |
| 19 | 47600.034 | Spring | 1 |
| 20 | 58602.001 | Plunger 38 DCN | 1 |
| 20 | 58602.007 | Plunger 38 DCN 1 | 1 |
| 21 | Not Available | Valve | 1 |
| 22 | Not Available | 38 DCN | 1 |
| 22 | 12750.050 | 38 DCN 1 | 1 |
| 23 | Not Available | Float | 1 |
| 24 | 47605.009 | Throttle Return Spring | 1 |
| 25 | 10020.401 | Throttle Shaft | 1 |
| 26 | 64005.050 | Butter Fly | 2 |
| 27 | 64570.009 | Throttle Plate Screw | 4 |
| 28 | 41540.016 | Gasket | 1 |
| 29 | 64900.003 | Float Pin | 1 |
| 30 | Not Available | Carburetor Body | 1 |
| 31 | Not Available | Washer | 1 |
| 32 | 61002.006 | Plug | 1 |
| 33 | 34715.015 | Fixing Nut | 1 |
| 34 | 55520.002 | Shaft Lock Tab | 1 |
| 35 | Not Available | Lever | 1 |
| 36 | 64750.001 | Idle Mixture Screw | 2 |
| 37 | 47600.007 | Spring | 2 |
| 37a | 47600.007 | Spring | 1 |
| 38 | Not Available | Sleeve | 1 |
| 39 | 64590.003 | Screw | 1 |
| 40 | 61015.001 | Plug | 2 |
| 41 | 64955.029 | Stud | 3 |
| 42 | Not Available | Main Venturi (Choke) | 2 |
| 43 | 41540.014 | Pump Jet Gasket | 2 |
| 44 | Not Available | Pump Jet 35 DCN | 1 |
| 44a | Not Available | Pump Jet 38 DCN 1 | 1 |
| 45 | 64290.005 | Valve | 1 |
| 46 | Not Available | Auxiliary Venturi | 2 |
| 47 | Not Available | Auxiliary Venturi Extension | 2 |
| 48 | 41530.004 | Gasket | 2 |
| 49 | 10602.001 | Fuel Banjo Bolt | 1 |
| 50 | 37022.001 | Fuel Filter | 1 |
| 51 | 10354.006 | Fuel Union | 1 |
| 52 | 41530.001 | Gasket | 1 |
| 53 | Not Available | Banjo Cap Nut | 1 |
| 54 | Not Available | Air Horn | 2 |
| 55 | 52150.010 | Air Horn Tab | 1 |
| 56 | 64535.001 | Screw | 1 |
