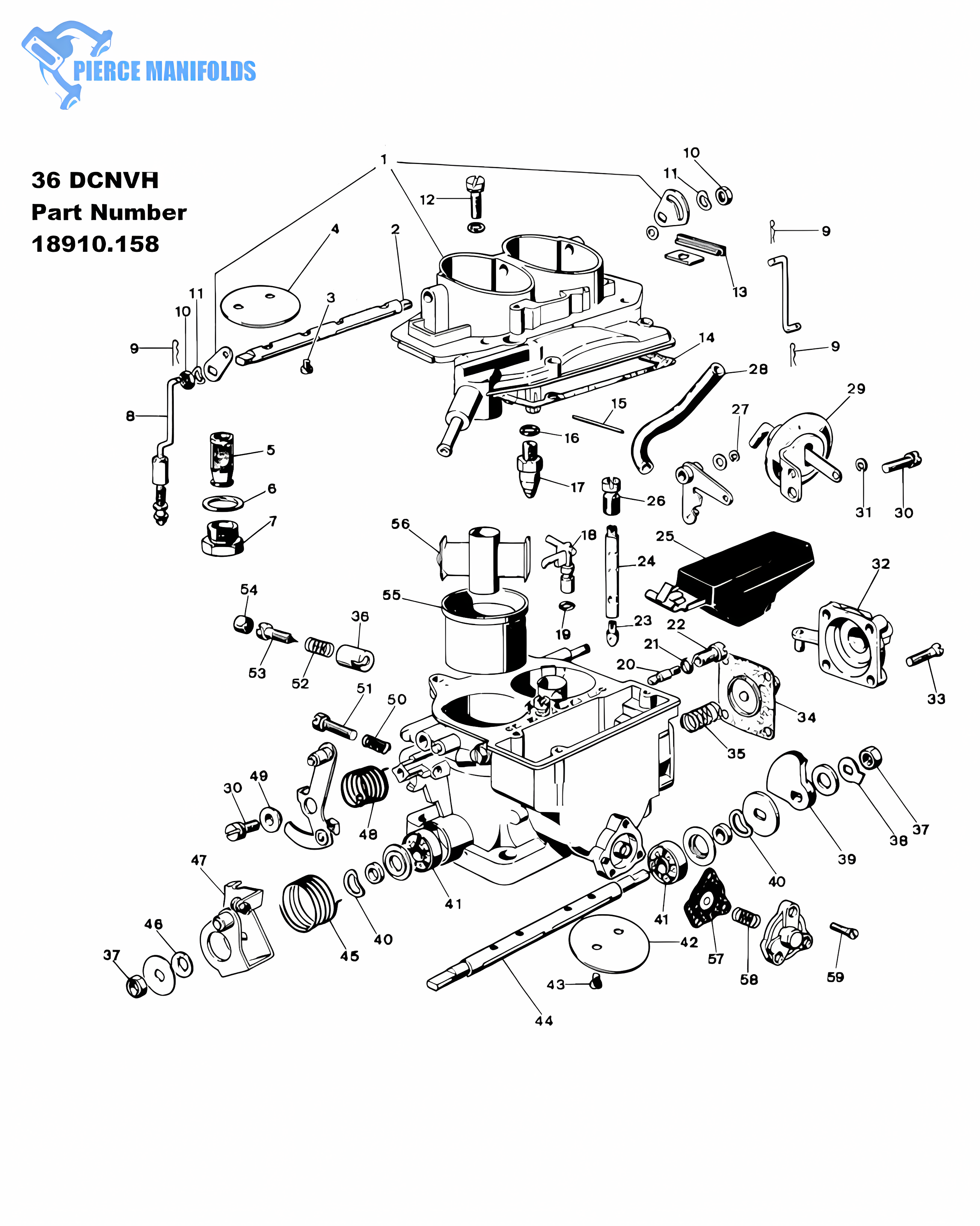

36 DCNVH Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Top Cover Assembly | 1 |
| 2 | 10005.225 | Choke Shaft | 1 |
| 3 | 64525.003 | Choke Plate Fixing Screw | 4 |
| 4 | 64005.052 | Choke Plate | 2 |
| 5 | 37022.010 | Fuel Filter | 1 |
| 6 | 41540.012 | Fuel Filter O-Ring | 1 |
| 7 | 61002.010 | Fuel Filter Cover | 1 |
| 8 | 61287.056 | Choke Rod | 1 |
| 9 | 32610.003 | Cotter Pin | 3 |
| 10 | 34715.006 | Nut | 2 |
| 11 | 55530.008 | Spring Washer | 2 |
| 12 | 64700.005 | Top Cover Fixing Screw | 5 |
| 13 | 61070.002 | Dust Seal Plug | 2 |
| 14 | 41705.051 | Top Cover Gasket | 1 |
| 15 | 52000.010 | Float Pin | 1 |
| 16 | 83102.120 | Needle & Seat Washer | 1 |
| 17 | 79503.* | Needle & Seat | 1 |
| 18 | 76414.* | Pump Jet | 1 |
| 19 | 41565.001 | O-Ring | 1 |
| 20 | 74405.* | Idle Jet | 2 |
| 21 | 41565.002 | O-Ring For Idle Jet Holder | 2 |
| 22 | 52570.006 | Idle Jet Holder | 2 |
| 23 | 73405.* | Main Jet | 2 |
| 24 | 61450.* | Emulsion Tube | 2 |
| 25 | Not Available | Float | 1 |
| 26 | 77501.* | Air Corrector Jet | 2 |
| 27 | 10140.502 | Clip | 1 |
| 28 | 61400.038 | Vacuum Hose | 1 |
| 29 | 57804.556 | Capsule Assembly | 1 |
| 30 | 64700.012 | Lever Fixing Screw | 2 |
| 31 | 10140.501 | Spring Ring | 1 |
| 32 | Not Available | Pump Diaphragm Cover | 1 |
| 33 | 64565.001 | Screw | 4 |
| 34 | 47407.261 | Pump Diaphragm | 1 |
| 35 | 47600.161 | Pump Diaphragm Spring | 1 |
| 36 | Not Available | Bushing | 2 |
| 37 | 34710.003 | Throttle Spindle Nut | 2 |
| 38 | 55520.004 | Shaft Lock Tab | 1 |
| 39 | 14852.042 | Pump Cam | 1 |
| 40 | 55530.010 | Spring Washer | 2 |
| 41 | 32650.003 | Sealed Bearing | 2 |
| 42 | 64005.014 | Throttle Plate | 2 |
| 43 | 64520.027 | Screw | 4 |
| 44 | 10005.211 | Throttle Shaft | 1 |
| 45 | 47610.155 | Spring | 1 |
| 46 | 55535.004 | Washer | 1 |
| 47 | Not Available | Lever | 1 |
| 48 | 47610.099 | Spring | 1 |
| 49 | 12775.057 | Washer | 1 |
| 50 | 47600.007 | Spring | 1 |
| 51 | 64625.025 | Screw | 1 |
| 52 | 47600.093 | Spring | 2 |
| 53 | Not Available | Mixture Screw | 2 |
| 54 | Not Available | Mixture Screw Plug | 2 |
| 55 | Not Available | Main Venturi (Choke) | 2 |
| 56 | Not Available | Auxiliary Venturi | 2 |
| 57 | 47407.250 | Diaphragm | 1 |
| 58 | 47600.105 | Starter Valve Spring | 1 |
| 59 | 64565.002 | Screw | 3 |
