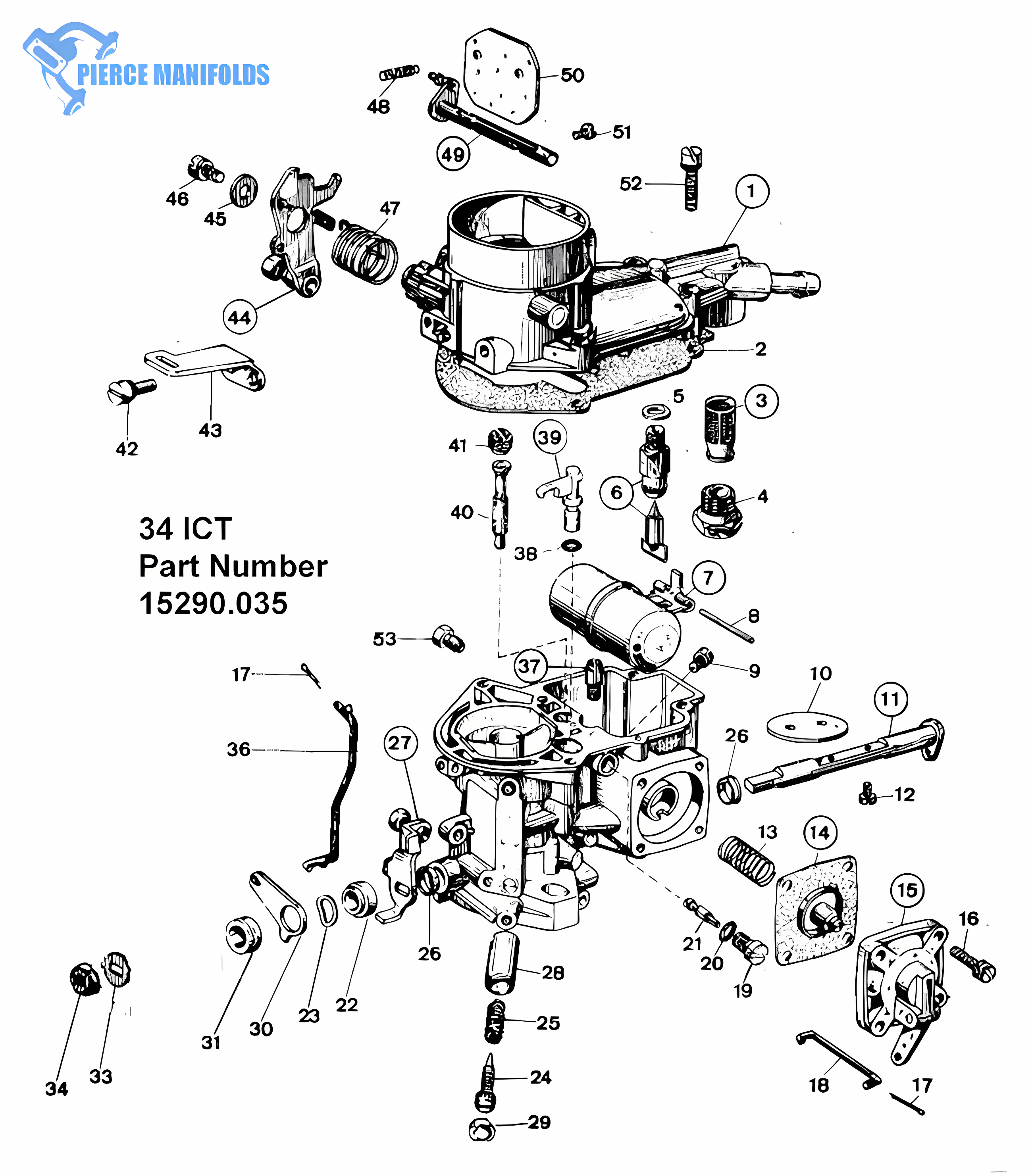

34 ICT Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Carburetor Body | 1 |
| 2 | 41700.010 | Top Cover Gasket | 1 |
| 3 | 37022.010 | Fuel Filter | 1 |
| 4 | 61002.018 | Filter Inspection Cover | 1 |
| 5 | 83102.070 | Needle Valve Gasket | 1 |
| 6 | 79507.* | Needle Valve | 1 |
| 7 | 41015.019 | Float | 1 |
| 8 | 52000.010 | Float Pin | 1 |
| 9 | 73801.* | Main Jet | 1 |
| 10 | 64005.007 | Throttle Plate | 1 |
| 11 | 10015.494 | Throttle Shaft | 1 |
| 12 | 64520.023 | Throttle Fixing Screw | 2 |
| 13 | 47600.107 | Accelerator Pump Spring | 1 |
| 14 | 47407.261 | Pump Diaphragm | 1 |
| 15 | Not Available | Pump Cover | 1 |
| 16 | 64700.004 | Pump Cover Fixing Screw | 4 |
| 17 | 32610.005 | Split Pin | 2 |
| 18 | 61280.020 | Pump Operating Rod | 1 |
| 19 | 52570.006 | Idle Jet Holder | 1 |
| 20 | 41565.002 | Gasket for Idle Jet Holder | 1 |
| 21 | 74403.* | Idle Jet | 1 |
| 22 | Not Available | Bushing | 1 |
| 23 | 55530.002 | Spring Washer | 1 |
| 24 | 64750.048 | Idle Mixture Adjusting Screw | 1 |
| 25 | 47600.007 | Spring For Idle Mixture Screw | 1 |
| 26 | 41575.010 | Shaft Seal | 2 |
| 27 | Not Available | Throttle Control Lever | 1 |
| 28 | Not Available | Bushing | 1 |
| 29 | Not Available | Plug | 1 |
| 30 | Not Available | Fast Idle Control Lever | 1 |
| 31 | Not Available | Bushing | 1 |
| 32 | 64750.048 | Cam With Lever | 1 |
| 33 | 55520.002 | Lock Washer | 1 |
| 34 | 34715.014 | Cam Fixing Nut | 1 |
| 35 | Not Available | Spring For Throttle Control Lever | 1 |
| 36 | Not Available | Fast Idle Control Rod | 1 |
| 37 | 79701.* | Pump Exhaust Valve | 1 |
| 38 | 41565.001 | Gasket For Pump Jet | 1 |
| 39 | 76407.* | Pump Jet | 1 |
| 40 | 61440.* | Emulsion Tube | 1 |
| 41 | 77201.* | Air Corrector Jet | 1 |
| 42 | 64700.012 | Spring Locking Bracket Fixing Screw | 1 |
| 43 | Not Available | Spring Locking Bracket | 1 |
| 44 | Not Available | Choke Control Lever Assembly | 1 |
| 45 | 55510.002 | Screw Washer For Choke Control Lever | 1 |
| 46 | 64700.012 | Choke Control Lever Fixing Screw | 1 |
| 47 | 47610.003 | Choke Lever Return Spring | 1 |
| 48 | 47605.025 | Choke Automaticity Spring | 1 |
| 49 | 10015.279 | Choke Shaft | 1 |
| 50 | 64010.026 | Choke Plate | 1 |
| 51 | 64525.003 | Choke Plate Fixing Screw | 2 |
| 52 | 64700.005 | Carb Cover Fixing Screw | 4 |
| 53 | 64605.017 | Sheath Fixing Screw | 1 |
