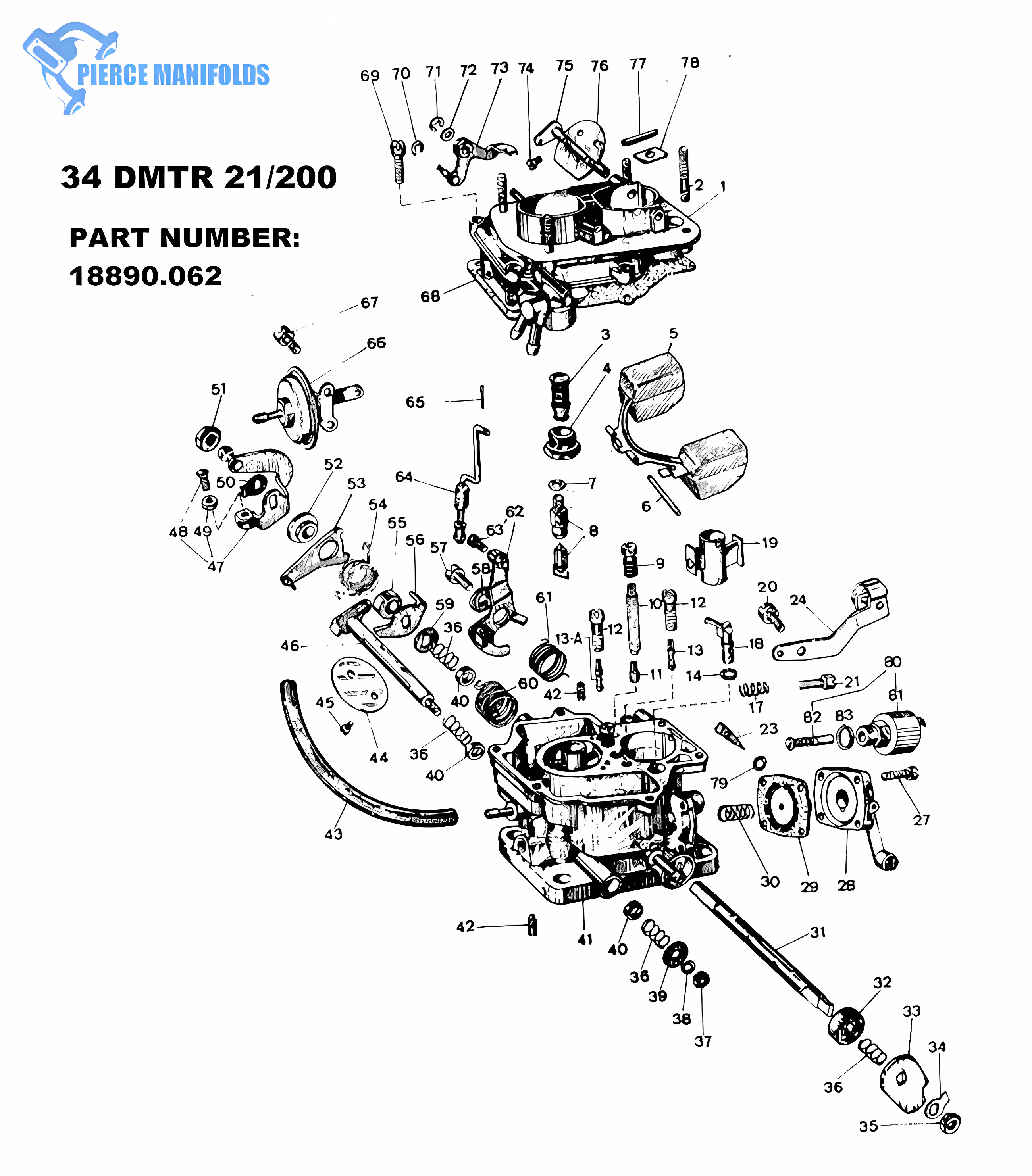

34 DMTR Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Carburetor Top | 1 |
| 2 | 64955.004 | 5 Mm Stud 38 Mm Long | 4 |
| 3 | 37022.010 | Fuel Filter | 1 |
| 4 | 61002.018 | Fuel Filter Inspection Plug | 1 |
| 5 | 41030.012 | Float - Plastic | 1 |
| 6 | 52000.036 | Float Pin | 1 |
| 7 | 83102.070 | Needle Valve Gasket | 1 |
| 8 | 79507.* | Needle & Seat | 1 |
| 9 | 77501.* | Air Corrector Jet | 2 |
| 10 | 61450.* | Emulsion Tube | 2 |
| 11 | 73405.* | Main Jet | 2 |
| 12 | 52570.004 | Idle Jet Holder | 2 |
| 13 | 74403.* | Idle Jet | 2 |
| 14 | 41565.001 | Pump Jet O-Ring | 1 |
| 17 | 47600.007 | Idle Speed Screw Spring | 1 |
| 18 | 76407.* | Pump Jet | 1 |
| 19 | 71115.* | Auxiliary Venturi | 2 |
| 20 | 64700.012 | Lever Fixing Screw | 1 |
| 21 | 64625.012 | Throttle Stop Screw | 1 |
| 23 | 64750.044 | Mixture Screw | 1 |
| 24 | Not Available | Choke Cable Bracket | 1 |
| 27 | 64700.006 | Pump Cover Fixing Screw | 4 |
| 28 | Not Available | Pump Cover | 1 |
| 29 | 47404.249 | Accelerator Pump Diaphragm | 1 |
| 30 | 47600.107 | Accelerator Pump Spring | 1 |
| 31 | 10000.241 | Primary Throttle Shaft | 1 |
| 31 | 10001.209 | Primary Throttle Shaft - Oversized | 1 |
| 32 | 50002.008 | Shaft Bushing | 1 |
| 33 | Not Available | Pump Cam | 1 |
| 34 | 55520.004 | Shaft Nut Lock Tab | 1 |
| 35 | 34710.003 | Shaft Nut | 1 |
| 36 | 47600.027 | Shaft Nut Bushing Retaining Spring | 4 |
| 37 | 34705.001 | Fixing Nut | 1 |
| 38 | 55525.001 | Spring Washer | 1 |
| 39 | Not Available | Washer | 1 |
| 40 | 12750.085 | Shaft Retaining Bushing | 3 |
| 41 | Not Available | Carburetor Body | 1 |
| 42 | Not Available | Set Screw | 2 |
| 43 | Not Available | Vacuum Line | 1 |
| 44 | 64005.018 | Throttle Plate | 2 |
| 45 | 64520.027 | Throttle Plate Screw | 4 |
| 46 | 10015.255 | Secondary Throttle Shaft | 1 |
| 46 | 10016.207 | Secondary Throttle Shaft Oversized | 1 |
| 47 | 45041.071 | Throttle Lever | 1 |
| 48 | 64595.009 | Screw | 1 |
| 49 | 34715.006 | Nut | 1 |
| 50 | 55520.002 | Shaft Nut Lock Tab | 1 |
| 51 | 34715.014 | Shaft Nut | 1 |
| 52 | 12775.053 | Bushing | 1 |
| 53 | 45069.015 | Loose Lever | 1 |
| 54 | 47610.092 | Spring | 1 |
| 55 | 12750.087 | Bushing | 1 |
| 56 | Not Available | Primary Throttle Stop Lever | 1 |
| 57 | 64700.012 | Lever Fixing Screw | 1 |
| 58 | 55510.002 | Washer | 1 |
| 59 | 55555.019 | Shaft Spacer | 1 |
| 60 | 47610.091 | Spring | 1 |
| 61 | 47610.058 | Choke Lever Spring | 1 |
| 62 | 45202.091 | Choke Lever - Including | 1 |
| 63 | 64615.004 | - Choke Cable Fixing Screw | 1 |
| 64 | 61287.009 | Choke Rod | 1 |
| 65 | 32610.005 | Split Pin | 1 |
| 66 | 57804.107 | Carb Capsule | 1 |
| 67 | 64700.012 | Lever Fixing Screw | 2 |
| 68 | 41705.041 | Top Cover Gasket | 1 |
| 69 | 64700.005 | Top Cover Fixing Screw | 6 |
| 70 | 10140.501 | Spring Ring | 1 |
| 71 | 10140.502 | Clip | 1 |
| 72 | 55510.034 | Carb Washer | 1 |
| 73 | 45069.017 | Lever | 1 |
| 74 | 64525.003 | Choke Plate Fixing Screw | 2 |
| 75 | 10015.256 | Choke Rod | 1 |
| 76 | 64010.029 | Choke Plate | 1 |
| 77 | 61070.002 | Dust Seal Plate | 1 |
| 78 | 52135.010 | Dust Seal Plate | 1 |
| 79 | 41565.010 | O-Ring | 1 |
| 80 | 43840.014 | Idle Cut Off Unit Complete | 1 |
| 81 | Not Available | Idle Cut Off Unit | 1 |
| 82 | 58352.010 | Idle Cut Off Needle | 1 |
| 83 | 41535.003 | Idle Cut Off Gasket | 1 |
