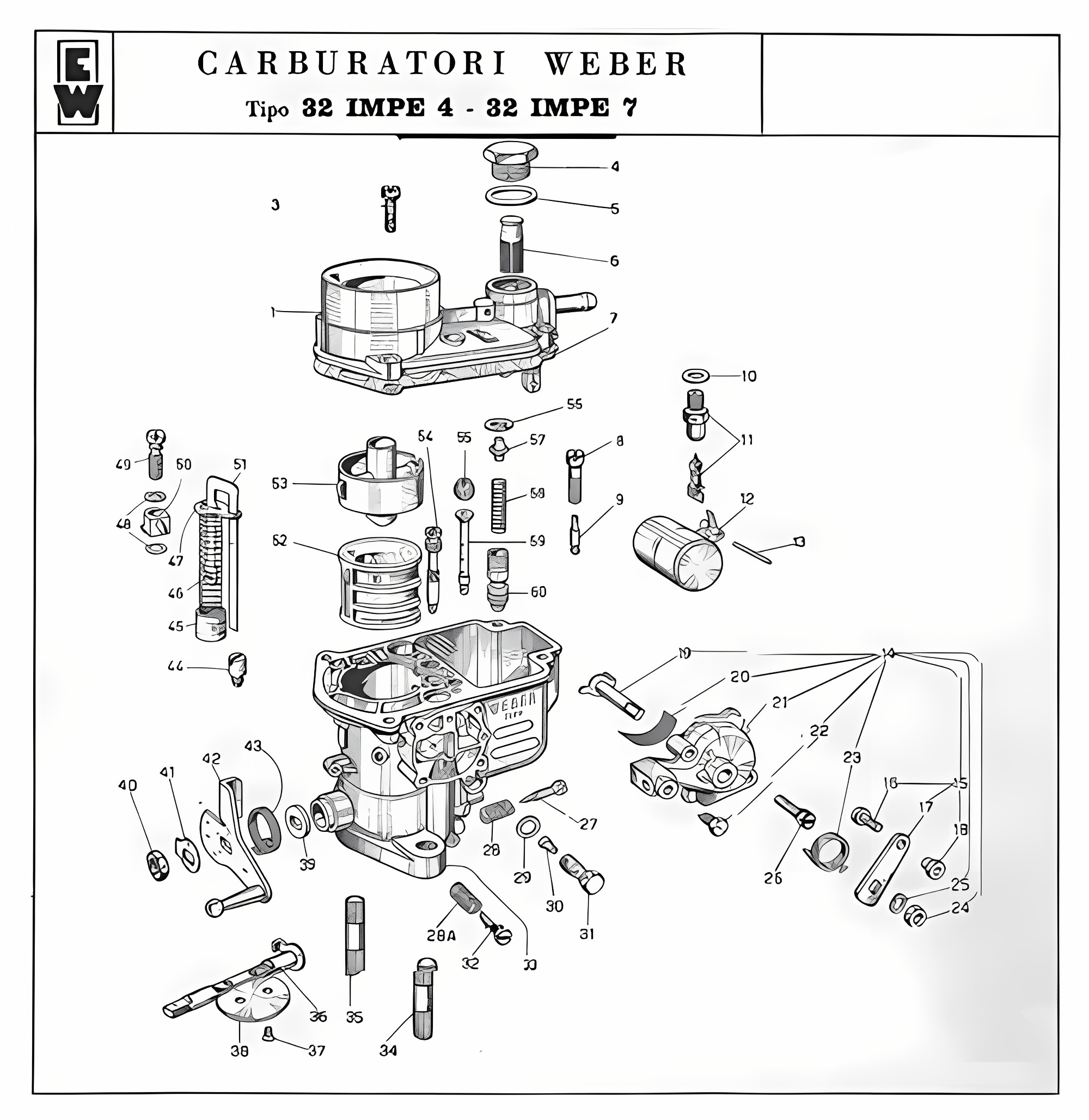

32 IMPE Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31706.016 | Carburetor Cover | 1 |
| 3 | 64700.005 | Carburetor Cover Screw | 4 |
| 4 | 61002.010 | Filter Inspection Plug | 1 |
| 5 | 41530.024 | Gasket Inspection Plug | 1 |
| 6 | 37022.010 | Screen Filter | 1 |
| 7 | 41700.001 | Gasket Carburetor Cover | 1 |
| 8 | 52570.004 | Idle Jet Holder | 1 |
| 9 | 41160.001 | Idle Jet | 1 |
| 10 | 83102.070 | Gasket, Needle valve | 1 |
| 11 | 64240.008 | Needle and Seat Valve | 1 |
| 12 | 41015.009 | Float | 1 |
| 13 | 52000.010 | Float Fulcrum Pin | 1 |
| 14 | 32536.007 | Starting Device Control, Complete | 1 |
| 15 | 45027.017 | Starting Lever | 1 |
| 16 | 64800.002 | Cable Fixing Screw | 1 |
| 17 | 45025.003 | Starter Control Lever | 1 |
| 18 | 34720.002 | Nut, Cable Fixing | 1 |
| 19 | 10085.002 | Starter Valve Control Shaft | 1 |
| 20 | 37000.015 | Starter Air Filter Screen | 1 |
| 21 | 32534.006 | Cover With Sheath Support | 1 |
| 22 | 64605.017 | Sheath Fixing Screw | 1 |
| 23 | 47610.004 | Return Spring | 1 |
| 24 | 34715.010 | Nut, Starting Control Lever | 1 |
| 25 | 55525.010 | Lock Washer | 1 |
| 26 | 64700.006 | Screw, Sheath Fixing | 2 |
| 27 | 64755.006 | Idle Adjustment Screw | 1 |
| 28 | 47600.084 | Spring, Idle Screw | 1 |
| 28A | 47600.084 | Spring, Throttle Position Screw | 1 |
| 29 | 41540.001 | Gasket, Main Jet Holder | 1 |
| 30 | 41120.001 | Main Jet | 1 |
| 31 | 52590.001 | Main Jet Holder | 1 |
| 32 | 64625.004 | Throttle Position Screw | 1 |
| 34 | 64955.202 | Flange Stud screw | 1 |
| 35 | 64955.203 | Flange Stud Screw | 1 |
| 36 | 10015.442 | Throttle Shaft | 1 |
| 37 | 64570.008 | Screw, Throttle Valve | 2 |
| 38 | 64005.027 | Throttle Valve | 1 |
| 39 | 55555.016 | Tab | 1 |
| 40 | 34715.014 | Nut, Throttle Shaft | 1 |
| 41 | 55520.002 | Tab | 1 |
| 42 | 45034.008 | Throttle Control Lever (IMPE 4) | 1 |
| 42 | 45034.068 | Throttle Control Lever (IMPE 7) | 1 |
| 43 | 47610.005 | Spring, Throttle Return | 1 |
| 44 | 64290.001 | Pump Exhaust Screw | 1 |
| 45 | 58602.003 | Pump Piston | 1 |
| 46 | 47600.034 | Pump Piston Spring | 1 |
| 47 | 52140.003 | Pump Positioning Plate | 1 |
| 48 | 41530.012 | Gasket, Pump Jet | 2 |
| 49 | 64290.003 | Pump Delivery Valve | 1 |
| 50 | 41252.005 | Pump Jet | 1 |
| 51 | 10400.004 | Pump Control Rod | 1 |
| 52 | 64936.001 | Choke | 1 |
| 53 | 31866.003 | Auxiliary Venturi | 1 |
| 54 | 41250.101 | Starting Jet | 1 |
| 55 | 41360.001 | Air Corrector Jet | 1 |
| 56 | 10140.010 | Retaining Clip | 1 |
| 57 | 12775.004 | Spring Guide and Retainer | 1 |
| 58 | 47600.086 | Spring, Starting Valve | 1 |
| 59 | 61440.241 | Emulsioning Tube | 1 |
| 60 | 64330.005 | Starting Valve | 1 |
