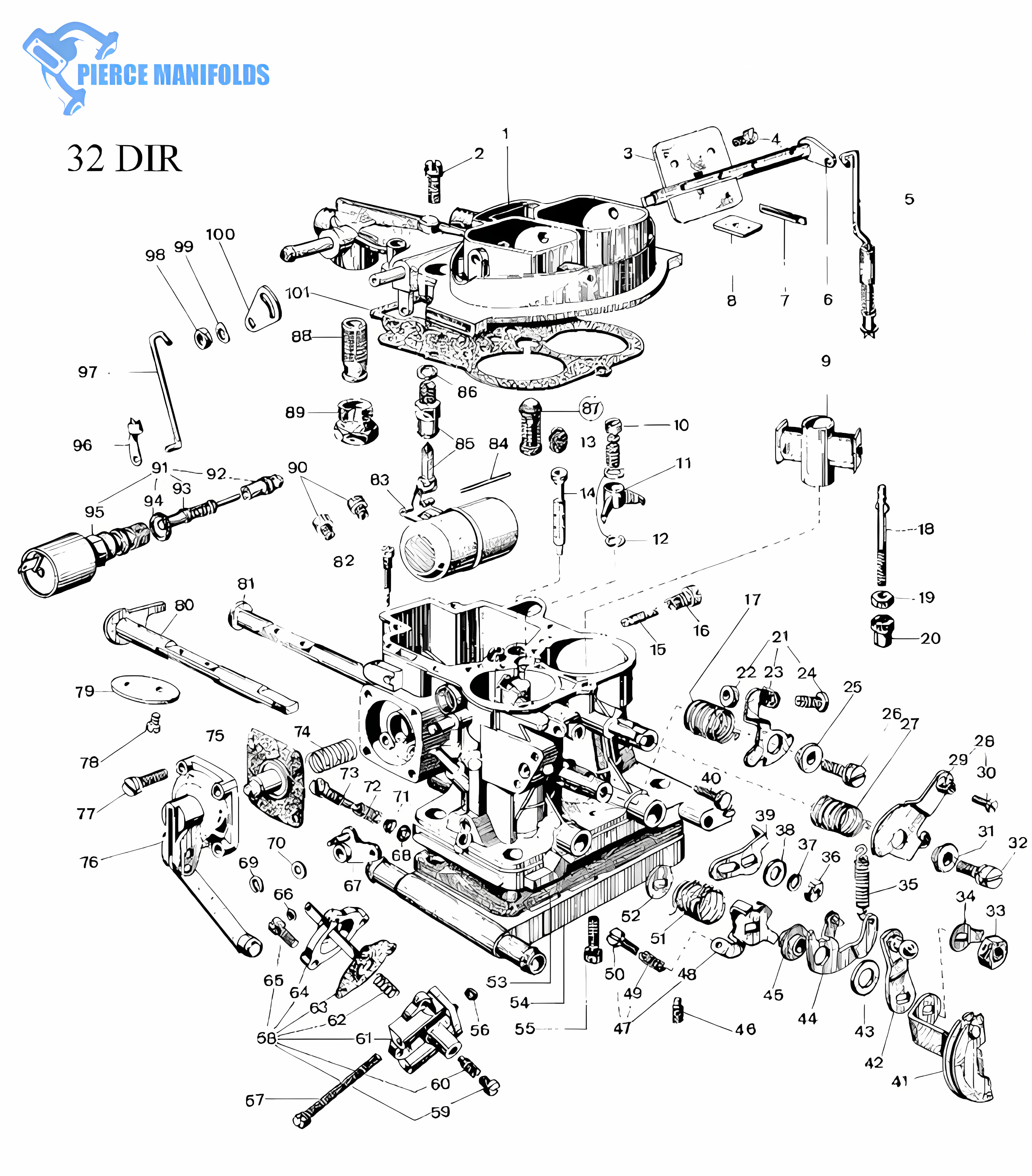

32 DIR Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31716.185 | Top Cover | 1 |
| 2 | 64700.005 | Top Cover Fixing Screw | 5 |
| 3 | 64010.006 | Choke Plate | 2 |
| 4 | 64525.003 | Choke Plate Fixing Screw | 4 |
| 5 | 61287.012 | Choke Rod | 1 |
| 6 | 10020.215 | Choke Shaft | 1 |
| 7 | 61070.002 | Dust Seal Plug | 2 |
| 8 | 52135.010 | Dust Seal Plate | 2 |
| 9 | 71120.350 | Auxiliary Venturi | 2 |
| 10 | 64290.015 | Valve | 1 |
| 11 | 76227.* | Pump Jet | 1 |
| 12 | 41540.014 | Pump Jet Gasket | 2 |
| 13 | 77201.* | Air Corrector Jet | 2 |
| 14 | 61440.* | Emulsion Tube | 2 |
| 15 | 74403.* | Idle Jet | 1 |
| 16 | 52570.005 | Idle Jet Holder | 1 |
| 17 | 47610.056 | Spring | 1 |
| 18 | 61285.025 | Rod | 1 |
| 19 | 34705.002 | Nut | 1 |
| 20 | 64905.001 | Screw | 1 |
| 21 | 45138.012 | Lever Assembly Including | 1 |
| 22 | 34715.006 | Nut | 1 |
| 23 | 45136.056 | Lever | 1 |
| 24 | 64595.009 | Screw | 1 |
| 25 | 12775.058 | Bushing | 1 |
| 26 | 64700.012 | Lever Fixing Screw | 1 |
| 27 | 47610.056 | Spring | 1 |
| 28 | 45202.085 | Lever Assembly Including | 1 |
| 29 | 45202.084 | Lever | 1 |
| 30 | 64615.004 | Screw | 1 |
| 31 | 12775.057 | Bushing | 1 |
| 32 | 64700.012 | Lever Fixing Screw | 1 |
| 33 | 34715.014 | Throttle Shaft Fixing Nut | 1 |
| 34 | 55520.002 | Shaft Lock Tab | 1 |
| 35 | 47605.034 | Spring | 1 |
| 36 | 34705.001 | Fixing Nut | 1 |
| 37 | 55525.001 | Spring Washer | 1 |
| 38 | 55510.046 | Washer For Loose Lever | 1 |
| 39 | 45032.013 | Lever | 1 |
| 40 | 64605.017 | Choke Cable Clamp | 1 |
| 41 | 45041.089 | Carb Lever | 1 |
| 42 | 45027.112 | Lever | 1 |
| 43 | 55510.061 | Washer For Loose Lever | 1 |
| 44 | 45069.021 | Lever | 1 |
| 45 | 12765.002 | Spacer Bushing | 1 |
| 46 | 64595.005 | Screw For Secondary Throttle | 1 |
| 47 | 45138.011 | Lever Assembly Including | 1 |
| 48 | 45136.055 | Lever | 1 |
| 49 | 47600.007 | Spring | 1 |
| 50 | 64625.006 | Screw | 1 |
| 51 | 47610.012 | Spring | 1 |
| 52 | 55555.001 | Shaft Spacer | 1 |
| 53 | 39152.014 | Base Spacer Gasket | 1 |
| 54 | 39166.001 | Heated Base | 1 |
| 55 | 64695.021 | Screw | 1 |
| 56 | 41565.008 | O-Ring | 1 |
| 57 | 64700.020 | Screw | 2 |
| 58 | 57804.065 | Cold Start Unit Including | 1 |
| 59 | 61015.003 | Plug | 1 |
| 60 | 64595.005 | Screw | 1 |
| 61 | 57804.023 | Starting Device | 1 |
| 62 | 47600.003 | Spring | 1 |
| 63 | 47407.065 | Diaphragm | 1 |
| 64 | 32382.011 | Cold Start Cover | 1 |
| 65 | 64700.004 | Fixing Screw | 3 |
| 66 | 10140.501 | Spring Ring | 1 |
| 67 | 45027.114 | Lever | 1 |
| 68 | 41565.002 | O-Ring | 1 |
| 69 | 10140.501 | Clip | 1 |
| 70 | 55510.034 | Washer | 1 |
| 71 | 58000.006 | Cup Washer | 1 |
| 72 | 47600.007 | Spring | 1 |
| 73 | 64750.042 | Mixture Screw | 1 |
| 74 | 47600.107 | Accelerator Pump Spring | 1 |
| 75 | 47407.261 | Pump Diaphragm | 1 |
| 76 | 32486.019 | Accelerator Pump Cover | 1 |
| 77 | 64700.004 | Fixing Screw | 4 |
| 78 | 64520.023 | Fixing Screw | 4 |
| 79 | 64005.090 | Throttle Valve | 2 |
| 80 | 10015.505 | Primary Throttle Shaft | 1 |
| 81 | 10015.479 | Secondary Throttle Shaft | 1 |
| 82 | 64900.001 | Pump Discharge Blanking Needle | 1 |
| 83 | 41015.004 | Brass Float | 1 |
| 84 | 52000.015 | Float Pin | 1 |
| 85 | 79519 | Needle & Seat | 1 |
| 86 | 83102.070 | Needle Valve Gasket | 1 |
| 87 | Not Available | Valve | 1 |
| 88 | 37022.010 | Fuel Filter | 1 |
| 89 | 61002.018 | Strainer Inspection Plug | 1 |
| 90 | 73801.* | Main Jet | 2 |
| 91 | 43840.001 | Idle Cut Off Solenoid Unit Including | 1 |
| 92 | 74407.* | Idle Jet | 1 |
| 93 | 52352.001 | Needle | 1 |
| 94 | 41565.013 | Gasket | 1 |
| 95 | 43846.001 | Idle Cut Off Solenoid Unit Including | 1 |
| 96 | 47670.008 | Spring | 1 |
| 97 | 61280.094 | Rod | 1 |
| 98 | 34715.006 | Nut | 1 |
| 99 | 55530.007 | Washer | 1 |
