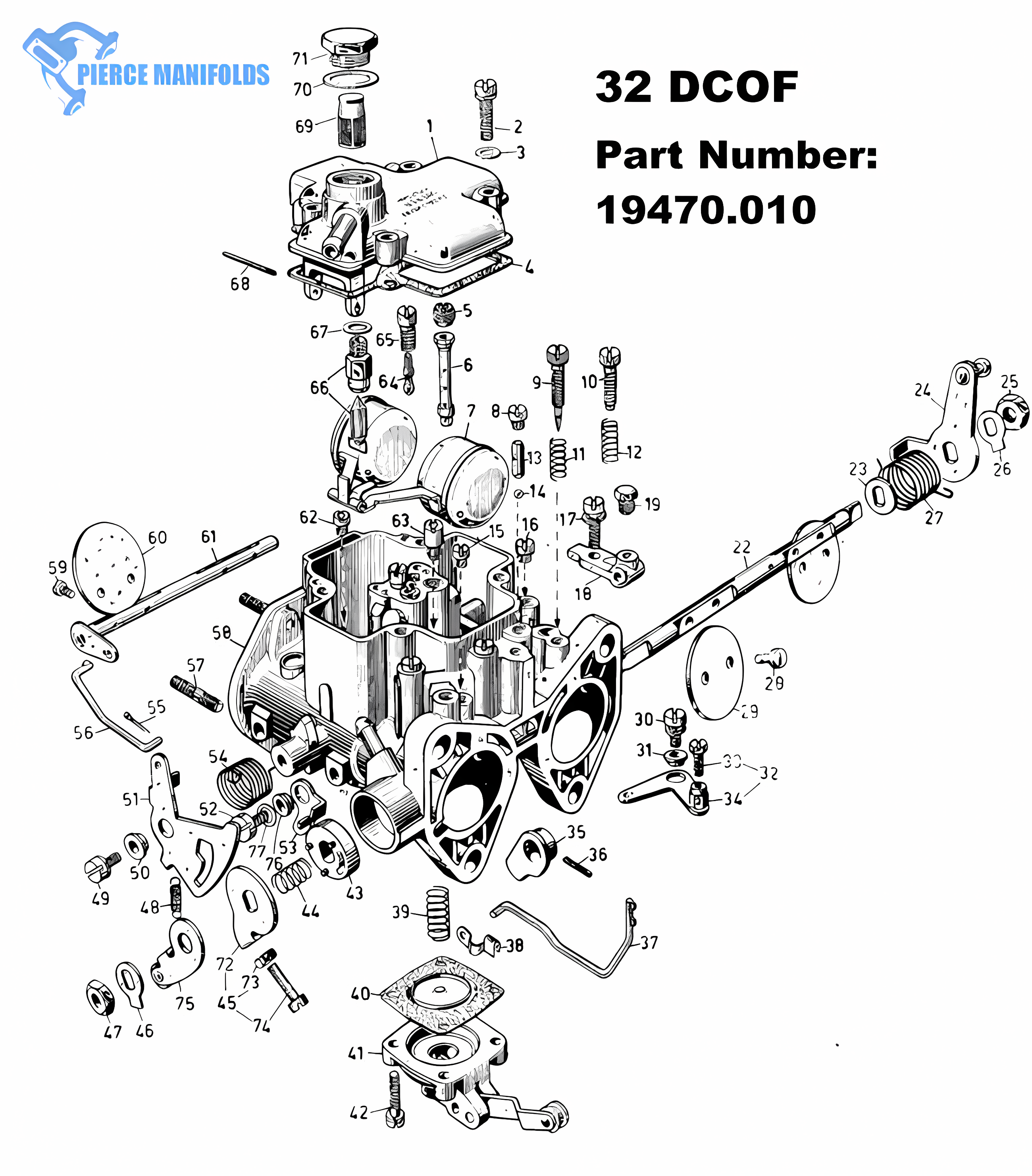

32 DCOF Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31736.005 | Carburetor Top | 1 |
| 2 | 64700.005 | Top Cover Fixing Screw | 4 |
| 3 | 55510.034 | Carburetor Washer | 4 |
| 4 | 41705.013 | Top Cover Gasket | 1 |
| 5 | 77201.* | Air Corrector Jet | 2 |
| 6 | 61440.* | Emulsion Tube | 2 |
| 7 | 41030.002 | Brass Float | 1 |
| 8 | 61015.006 | Pump Demand Valve Cover | 2 |
| 9 | 64750.001 | Idle Mixture Screw | 1 |
| 10 | 64625.012 | Throttle Stop Screw | 1 |
| 11 | 47600.007 | Spring | 1 |
| 12 | 47600.007 | Spring | 1 |
| 13 | 52730.001 | Pump Valve Weight | 2 |
| 14 | 58300.003 | Stuffing Ball | 2 |
| 15 | 61015.004 | Plug | 1 |
| 16 | 61015.006 | Pump Demand Valve Cover | 2 |
| 17 | 64700.003 | Screw | 1 |
| 18 | 58700.019 | Lever | 1 |
| 19 | 64605.017 | Choke Cable Clamp | 1 |
| 22 | 10005.411 | Throttle Shaft | 1 |
| 22 | 10006.409 | Oversized Throttle Shaft | 1 |
| 23 | 55555.019 | Shaft Spacer | 1 |
| 24 | Not Available | Lever | 1 |
| 25 | 34715.014 | Throttle Shaft Fixing Nut | 1 |
| 26 | 55520.002 | Shaft Lock Tab | 1 |
| 27 | 47610.071 | Shaft Return Spring | 4 |
| 28 | 64520.027 | Screw | 2 |
| 29 | 64005.092 | Throttle Plate | 1 |
| 30 | 64700.012 | Lever Fixing Screw | 1 |
| 31 | 12775.010 | Bushing For Lever | 1 |
| 32 | 45096.015 | Lever With Screw | 1 |
| 33 | 64615.004 | Screw | 1 |
| 34 | 45096.014 | Choke Lever | 1 |
| 35 | 14852.004 | Pump Activating Lever | 1 |
| 36 | 58445.001 | Fixing Pin | 1 |
| 37 | 61280.039 | Carb Rod | 1 |
| 38 | 47670.002 | Rod Clamp | 1 |
| 39 | 47600.107 | Accelerator Pump Spring | 1 |
| 40 | 47407.261 | Pump Diaphragm | 1 |
| 41 | 32486.017 | Accelerator Pump Cover | 1 |
| 42 | 64700.004 | Choke Cover Fixing Screw | 4 |
| 43 | 50002.004 | Throttle Shaft Spring Retainer | 1 |
| 44 | 47600.027 | Bush Retaining Spring | 1 |
| 45 | 45082.007 | Spacer Lever With Screw | 1 |
| 46 | 55520.003 | Lock Tab | 1 |
| 47 | 34710.003 | Throttle Spindle Nut | 1 |
| 48 | 47605.025 | Spring | 1 |
| 49 | 64700.012 | Lever Fixing Screw | 1 |
| 50 | 12775.010 | Bushing For Lever | 1 |
| 51 | 45200.020 | Lever | 1 |
| 52 | 64520.029 | Screw | 1 |
| 53 | 45032.104 | Lever | 1 |
| 54 | 47610.003 | Spring | 1 |
| 55 | 32610.006 | Split Pin | 1 |
| 56 | 61280.040 | Carb Rod | 1 |
| 57 | 64955.104 | Stud | 4 |
| 58 | Not Available | Carburetor Body | 1 |
| 59 | 64625.003 | Choke Plate Fixing Screw | 4 |
| 60 | 64005.012 | Throttle Plate | 2 |
| 61 | 10020.211 | Choke Shaft | 1 |
| 62 | 73801.* | Main Jet | 2 |
| 63 | 79701.* | Exhaust Valve | 1 |
| 64 | 74403.* | Idle Jet | 2 |
| 65 | 52570.003 | Jet Holder | 2 |
| 66 | 79507.* | Needle & Seat | 1 |
| 67 | 83102.070 | Needle Valve Gasket | 1 |
| 68 | 52000.015 | Float Pin | 1 |
| 69 | 37022.010 | Fuel Filter | 1 |
| 70 | 41530.024 | Fuel Filter Gasket | 1 |
| 71 | 61002.01 | Fuel Filter Cover | 1 |
| 72 | 45080.012 | Roller Wheel Lever | 1 |
| 73 | 34705.002 | Nut | 1 |
| 74 | 64520.028 | Screw | 1 |
| 75 | 45082.006 | Spacer Lever | 1 |
| 76 | 12775.010 | Bushing For Lever | 1 |
| 77 | 55530.008 | Spring Washer | 1 |
