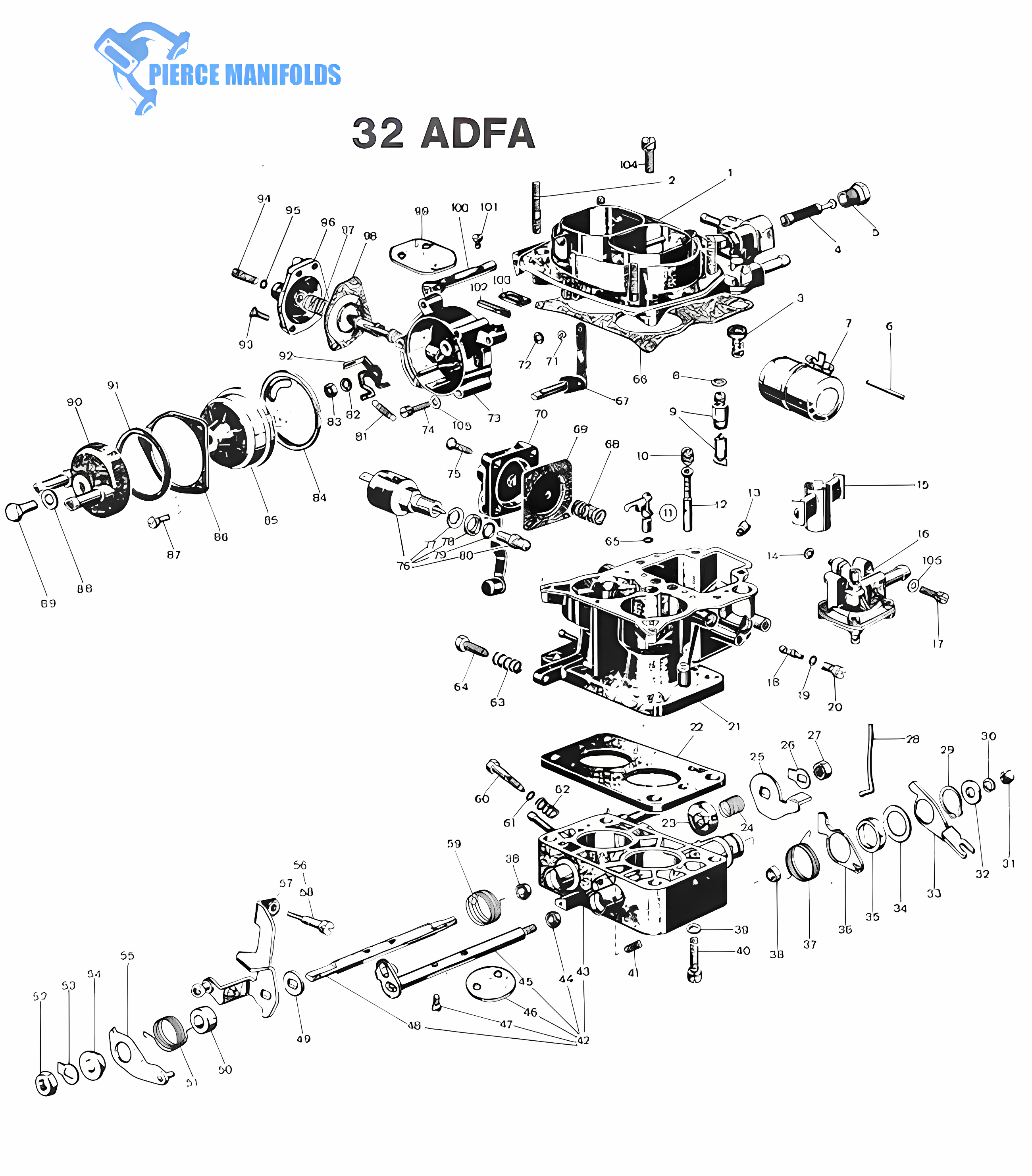

32 ADFA Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | Not Available | Top Cover Assembly | 1 |
| 2 | 64955.007 | Top Cover Stud | 4 |
| 3 | 64372.009 | Plunger | 1 |
| 4 | 37022.004 | Fuel Screen | 1 |
| 5 | 61002.019 | Plug | 1 |
| 6 | 52000.015 | Float Pin | 1 |
| 7 | 41015.004 | Brass Float | 1 |
| 8 | 83102.070 | Needle Valve Gasket | 1 |
| 9 | 79519 | Needle & Seat | 1 |
| 10 | 77201.* | Air Corrector Jet | 2 |
| 11 | 76407.* | Pump Jet | 1 |
| 12 | 61440.* | Emulsion Tube | 2 |
| 13 | 73801.* | Main Jet | 2 |
| 14 | 41565.008 | O-Ring | 1 |
| 15 | 70512.* | Auxiliary Venturi | 2 |
| 16 | 31800.027 | Capsule | 1 |
| 17 | 64700.010 | Screw | 2 |
| 18 | 74403.* | Idle Jet | 1 |
| 19 | 41565.002 | O-Ring For Idle Jet Holder | 1 |
| 20 | 52570.006 | Idle Jet Holder | 1 |
| 21 | Not Available | Carburetor Body | 1 |
| 22 | 39152.015 | Base Spacer Gasket | 1 |
| 23 | 50002.008 | Shaft Bushing | 1 |
| 24 | 47600.027 | Bush Retaining Spring | 1 |
| 25 | 14850.102 | Cam | 1 |
| 26 | 55520.004 | Shaft Lock Tab | 1 |
| 27 | 34710.003 | Throttle Spindle Nut | 1 |
| 28 | 61280.115 | Rod | 1 |
| 29 | 10140.304 | Spring Ring | 1 |
| 30 | 55525.001 | Spring Washer | 1 |
| 31 | 34705.001 | Nut | 1 |
| 32 | 55510.081 | Washer | 1 |
| 33 | 45067.048 | Lever | 1 |
| 34 | 55530.014 | Washer | 1 |
| 35 | 12750.103 | Bushing | 1 |
| 36 | 45067.047 | Lever | 1 |
| 37 | 47610.102 | Spring | 1 |
| 38 | 41575.010 | Bushing | 2 |
| 39 | 55510.034 | Lock Washer | 2 |
| 40 | 64700.016 | Screw | 2 |
| 41 | 64595.013 | Screw | 1 |
| 42 | Not Available | Carburetor Base Assembly | 1 |
| 43 | Not Available | Carburetor Base | 1 |
| 44 | 41575.010 | Bushing | 1 |
| 45 | 10015.273 | Secondary Throttle Shaft | 1 |
| 46 | 64005.090 | Throttle Valve | 2 |
| 47 | 64520.027 | Screw | 4 |
| 48 | 10000.264 | Primary Throttle Shaft | 1 |
| 49 | 55555.019 | Shaft Spacer | 1 |
| 50 | 12750.097 | Spacer | 1 |
| 51 | 47610.092 | Spring | 1 |
| 52 | 34715.014 | Nut | 1 |
| 53 | 55520.002 | Shaft Lock Tab | 1 |
| 54 | 12775.053 | Bushing | 1 |
| 55 | 45069.030 | Lever | 1 |
| 56 | 45041.116 | Lever | 1 |
| 57 | 64590.010 | Screw | 1 |
| 58 | Not Available | Washer | 2 |
| 59 | 47610.091 | Spring | 1 |
| 60 | 64755.016 | Screw | 1 |
| 61 | 41565.010 | O-Ring | 1 |
| 62 | 47600.095 | Spring | 1 |
| 63 | 47600.007 | Spring | 1 |
| 64 | 64625.012 | Throttle Stop Screw | 1 |
| 65 | 41565.001 | O-Ring | 1 |
| 66 | 41705.049 | Top Cover Gasket | 1 |
| 67 | 10085.042 | Shaft | 1 |
| 68 | 47600.092 | Pump Loading Spring | 1 |
| 69 | 47407.118 | Diaphragm | 1 |
| 70 | 32486.069 | Accelerator Pump Cover | 1 |
| 71 | 10140.501 | Spring Ring | 1 |
| 72 | 41565.008 | O-Ring | 1 |
| 73 | Not Available | Housing | 1 |
| 74 | 64695.021 | Top Cover Screw | 2 |
| 75 | 64565.001 | Screw | 4 |
| 76 | 43928.060 | ICU Solenoid | 1 |
| 77 | 55530.016 | Washer | 1 |
| 78 | 58000.019 | Plate | 1 |
| 79 | 41565.001 | O-Ring | 1 |
| 80 | 74409.* | Idle Jet | 1 |
| 81 | 47605.019 | Spring | 1 |
| 82 | 55530.013 | Washer | 1 |
| 83 | 34715.016 | Nut | 1 |
| 84 | 41640.052 | Auto Choke Body Gasket | 1 |
| 85 | Not Available | Water Choke Element | 1 |
| 86 | 52135.029 | Choke Lock Ring | 1 |
| 87 | 64615.005 | Screw | 3 |
| 88 | 41530.002 | Gasket | 1 |
| 89 | 64610.008 | Screw | 1 |
| 90 | 32444.011 | Water Choke Cover | 1 |
| 91 | 41555.001 | Water Cover Gasket | 1 |
| 92 | 45046.037 | Choke Actuating Lever | 1 |
| 93 | 64560.004 | Screw | 3 |
| 94 | 64895.010 | Screw | 1 |
| 95 | 41565.010 | O-Ring | 1 |
| 96 | 32384.039 | Screw | 1 |
| 97 | 47600.092 | Pump Loading Spring | 1 |
| 98 | Not Available | Diaphragm | 1 |
| 99 | 64010.034 | Throttle Valve | 1 |
| 100 | 10015.274 | Shaft | 1 |
| 101 | 64525.003 | Choke Plate Fixing Screw | 2 |
| 102 | 61070.002 | Dust Seal Plug | 1 |
| 103 | 52135.018 | Dust Seal Plate | 1 |
| 104 | 64700.005 | Top Cover Fixing Screw | 6 |
| 105 | 55510.034 | Carb Washer | 2 |
