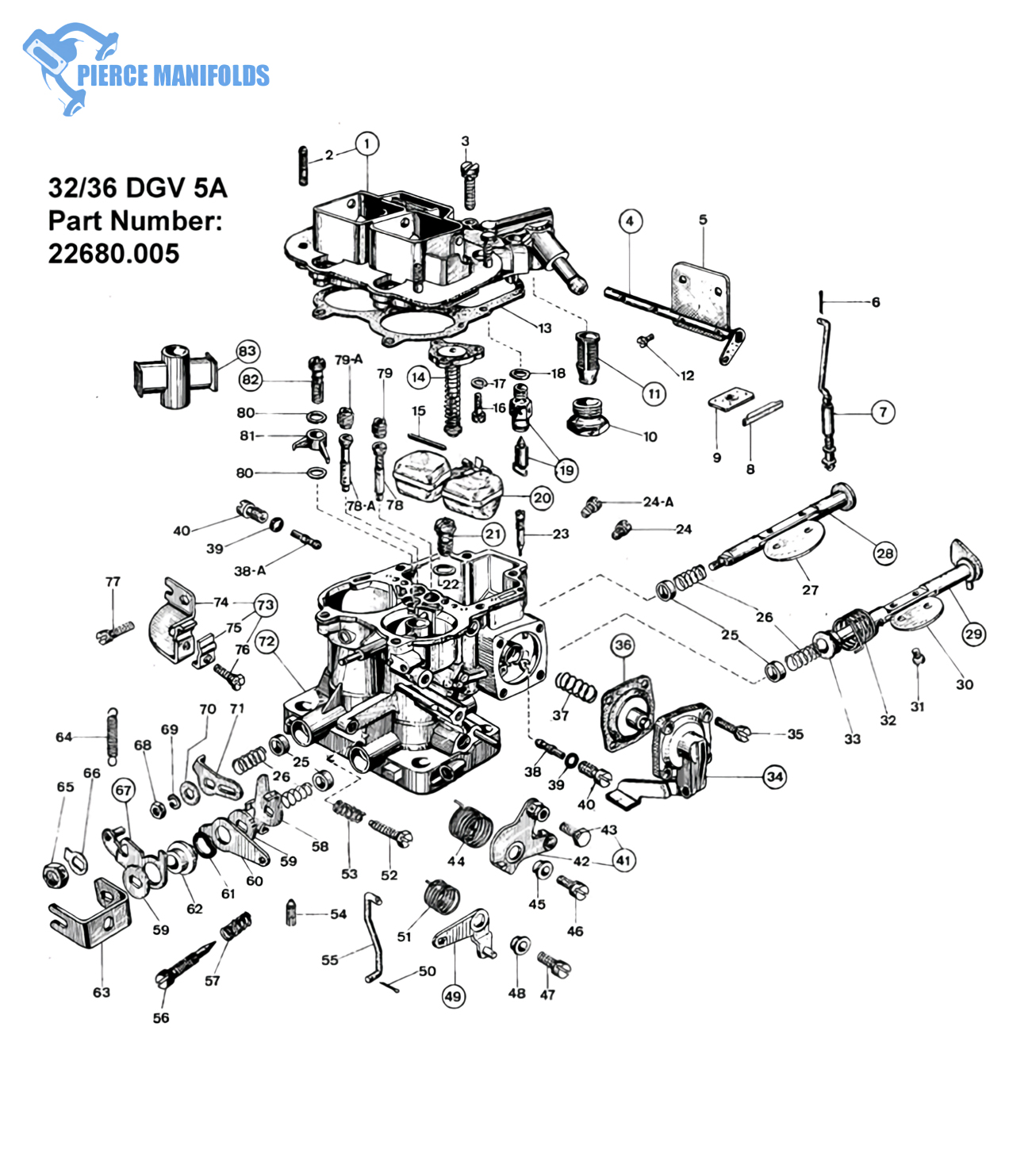

3236DGV Exploded View
| No | Part No | Description | Qty |
|---|---|---|---|
| 1 | 31716.132 | Carburetor Cover Assy. | 1 |
| 2 | 64955.002 | Stud Bolt | 4 |
| 3 | 64700.001 | Carb. Cover Fixing Screw | 6 |
| 4 | 10020.222 | Choice Shaft & Lever Assy. | 1 |
| 5 | 64010.007 | Choke Valve | 2 |
| 6 | 32610.005 | Split Pin | 1 |
| 7 | 61287.008 | Choke Rod | 1 |
| 8 | 61070.002 | Dust Seal Plug | 1 |
| 9 | 52135.010 | Dust Seal Plate | 1 |
| 10 | 61002.018 | Strainer Inspection Plug | 1 |
| 11 | 37022.010 | Strainer Assy. | 1 |
| 12 | 64525.003 | Choke Plates Fixing Screw | 4 |
| 13 | 41705.035 | Carb Cover Gasket | 1 |
| 14 | 57804.052 | Carb Power Valve Assy. | 1 |
| 15 | 52000.015 | Float Fixing Pin | 1 |
| 16 | 64700.007 | Control Valve Retaining Screw | 3 |
| 17 | 55510.038 | Washer For Control Valve Screw | 3 |
| 18 | 83102.070 | Needle Valve Gasket | 1 |
| 19 | 79519.* | Needle Valve Assy. | 1 |
| 20 | 41030.019 | Float Assy. | 1 |
| 21 | 64235.016 | Full Power Needle Valve Assy. | 1 |
| 22 | 41530.013 | Power Valve Gasket | 1 |
| 23 | 64900.001 | Pump Discharge Blanking Needle | 1 |
| 24 | 73801.* | Primary Main Jet | 1 |
| 24A | 73801.* | Secondary Main Jet | 1 |
| 25 | 12750.085 | Shaft Retaining Bushing | 4 |
| 26 | 47600.027 | Bush Retaining Spring | 4 |
| 27 | 64005.034 | Secondary Throttle Valve | 1 |
| 28 | 10015.492 | Secondary Shaft | 1 |
| 29 | 10015.493 | Primary Shaft | 1 |
| 30 | 64005.090 | PrimaryThrottle Valve | 1 |
| 31 | 64520.023 | Throttle Plate Fixing Screw | 4 |
| 32 | 47610.079 | Shaft Return Spring | 1 |
| 33 | 12765.047 | Spacer | 1 |
| 34 | 32486.076 | Accelerator Pump Cover Assy. | 1 |
| 35 | 64700.006 | Pump Cover Fixing Screw | 4 |
| 36 | 47407.249 | Accelerator Pump Diaphragm Assy. | 1 |
| 37 | 47600.092 | Pump Loading Spring | 1 |
| 38 | 74403.* | Primary Idle Jet | 1 |
| 38A | 74403.* | Secondary Idle Jet | 1 |
| 39 | 41565.002 | Gasket For Idling Jet Holder | 2 |
| 40 | 52570.006 | Idling Jet Holder | 2 |
| 41 | 45202.064 | Choke Control Lever Assy. - Including | 1 |
| 42 | Not Serviced | -Lever | 1 |
| 43 | 64615.004 | -Screw Securing Wire | 1 |
| 44 | 47610.058 | Spring For Choke Lever | 1 |
| 45 | 12775.010 | Bushing For Choke Lever | 1 |
| 46 | 64700.012 | Choke Lever Fixing Screw | 1 |
| 47 | 64700.012 | Square Lever Fixing Screw | 1 |
| 48 | 12775.010 | Bushings For Square Lever | 1 |
| 49 | 45096.025 | Fast Idle Control Square Lever Assy. | 1 |
| 50 | 32610.005 | Split Pin | 1 |
| 51 | 47610.033 | Spring For Square Lever | 1 |
| 52 | 64625.017 | Primary Throttle Adjusting Screw | 1 |
| 53 | 47600.007 | Spring For Throttle Adjusting Screw | 1 |
| 54 | 64595.005 | Secondary Throttle Adusting Screw | 1 |
| 55 | 61280.086 | Fast Idling Control Rod | 1 |
| 56 | 64750.025 | Idle Adjusting Screw | 1 |
| 57 | 47600.007 | Spring For Idle Adjusting Screw | 1 |
| 58 | 45046.020 | Primary Throttle Control Lever | 1 |
| 59 | 55510.061 | Washer For Loose Lever | 2 |
| 60 | 45067.024 | Fast Idling Loose Lever | 1 |
| 61 | 55530.002 | Wavy Washer | 1 |
| 62 | 12775.006 | Bushing For Loose Lever | 1 |
| 63 | 45136.029 | Throttle Valve Control Lever | 1 |
| 64 | 47605.010 | Spring For Loose Lever | 1 |
| 65 | 34715.014 | Throttle Shaft Fixing Nut | 1 |
| 66 | 55520.002 | Lock Washer | 1 |
| 67 | 45069.011 | Loose Lever Assy. | 1 |
| 68 | 34705.011 | Secondary Shaft Fixing Nut | 1 |
| 69 | 55525.001 | Spring Washer | 1 |
| 70 | 55510.046 | Washer For Loose Lever | 1 |
| 71 | 45032.124 | Secondary Throttle Control Lever | 1 |
| 72 | Not Serviced | Carburetor Body | 1 |
| 73 | 58702.024 | Sheath Support Assy. -Including | 1 |
| 74 | 58700.028 | -Sheath Support | 1 |
| 75 | 52145.001 | -Sheath Securing Plate | 1 |
| 76 | 64615.007 | -Sheath Plate Fixing Screw | 1 |
| 77 | 64700.012 | Sheath Support Fixing Screw | 1 |
| 78 | 61440.* | Primary Emulsion Tube | 1 |
| 78A | 61440.* | Secondary Emulsion Tube | 1 |
| 79 | 77201.* | Primary Air Corrector Jet | 1 |
| 79A | 77201.* | Secondary Air Corrector Jet | 1 |
| 80 | 41540.014 | Pump Jet Gasket | 2 |
| 81 | 76226.* | Accelerator Pump Jet | 1 |
| 82 | 64290.024 | Pump Delivery Valve Assy. | 1 |
| 83 | 71111.* | Auxiliary Venturi | 1 |
